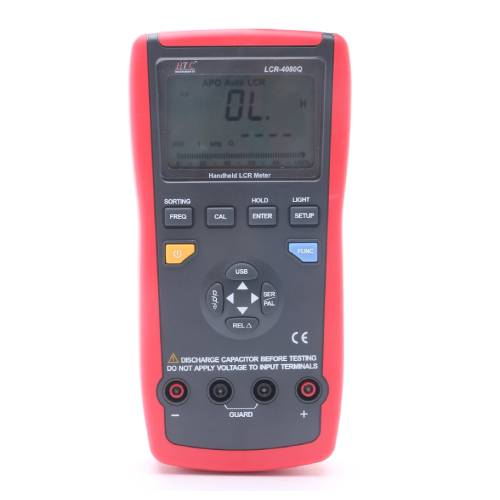

HTC Instruments LCR-4080Q LCR meter

It is professional to measure inductance, capacitance and resistance. It has the features of low power dissipation, high accuracy and fast speed. It can select the series-parallel measurement mode; measure the quality factor of components, the loss, the phase angle, equivalent resistance and DC resistance.It can provide up to 5 kinds of frequency under the inductance, capacitance and resistance mode to satisfy the actual requirement.

Display Count: 20000, D/Q Display Count: 2000
D/Q Resolution: 0.001
Real-Time Display Test Frequency: √
Measurement Mode: Series/Parallel
Analogue Bar Graph: 26
Deviation Ratio Measurement: √
Output Impedance: 120Ω

Rs. 17,820.00 /each Save Rs. 3920 (22% Off)

Rs. 13,900.00 /each (Incl GST-18%)

Technical Specifications

<ul>















<li> </li>

<li> </li>





<li>Auto Range: √</li>























<li> </li>

<li> </li>





<li>Relative Mode: √</li>























<li> </li>

<li> </li>





<li>USB Interface: √</li>























<li> </li>

<li> </li>





<li>USB Interface/PC Data Records: 60000</li>























<li> </li>

<li> </li>





<li>LCD Backlight: √</li>























<li> </li>

<li> </li>





<li>Inductance (H): 20uH~2000H ±(0.5%+5)</li>























<li> </li>

<li> </li>





<li>Capacitance (F): 200pF~20mF ±(0.5%+5)</li>























<li> </li>

<li> </li>





<li>Resistance (Ω): 20Ω~200MΩ ±(0.3%+5)</li>























<li> </li>

<li> </li>





<li>Test Frequency (Hz): 100Hz/120Hz/1KHz/10KHz/100KHz</li>























<li> </li>

<li> </li>





<li>Operational Voltage: 0.6Vrms</li>























<li> </li>

<li> </li>





<li>Comparsion Function: √</li>























<li> </li>

<li> </li>





<li>Data Hold: √</li>























<li> </li>

<li> </li>





<li>Auto LCR Smart Check and Measurement: √</li>























<li> </li>

<li> </li>





<li>Calibration Function: √</li>























<li> </li>

<li> </li>





<li>Test Parameters: L/C/R/DCR/Q/D/θ/ESR</li>































<li> </li>

<li> </li>





<li> </li>















<li> </li>

<li> </li>







<li> </li>



</ul>

Warranty: 1 Year

Uses

It is applicable to measuring and filtrating the inductance, capacitance and resistance of lab, production line, maintenance point and teaching. It is the ideal tool of maintaining for many users.
