HTC Instruments

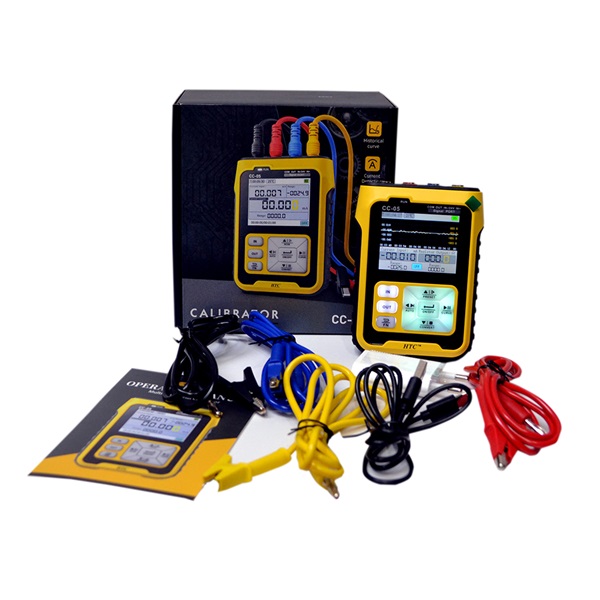

HTC Instruments CC-05 Multi-Functional Calibrator

SKU: CC0050
Rs. 14,675.00 MRP Rs. 18,345.00 Save Rs. 3,670.00 (21% off) Inclusive of GST-18%
In Stock (10 available) Dispatch lead time: Same day dispatch MOQ 1 piece Technical datasheet (PDF)
Quantity to add

This CC-05 is a small and light multifunctional Calibrator and has a frequency range up to 10kHz with an frequency accuracy of ± 2%. It has a maximum active and passive current output of 24mA and a maximum voltage output of 24V with a resolution of 0.001V. This signal generator is mainly used for troubleshooting PLCs, DCS and testing. It has a large battery of 3000mAh and you will be able to use the it for up to 10 hours. It also has mV thermocouple input and output. It is easy to use and includes a 2.4" colour screen.
With input to output conversion, you can convert input signals to output signals into different units.

  • Accuracy ± 0.02%
  • Power: 3.7V Rechargeable Battery
  • Program automatic lift output
  • Preset output
  • Real-time curve
  • Output Timing
  • History record
  • USB Analog serial communication



Product information

Everything you need to know

Technical Specifications

Signal                   Range              Precision                   Resolution                  Impedance

Current (mA)      0~24mA     ± (0.02%+0.003)            0.001mA                       100

Voltage (V)          0~24V         ± (0.02%+0.003)            0.001V                          500K

Passive (XMT)     0~24mA     ± (0.02%+0.003)             0.001mA                     100

24V loop              0~24mA      ± (0.1%+0.005)              0.00mA                        100

FRQ (Hz)               0~9999Hz   ± 2%                                 5digit                       1MK

mV                      -10~100mV   ± (0.03%+0.003)           0.01mV                        2K

TC (TC-S)              0~1760ºC     ± (0.2%+1)                      1ºC                          2K

TC (TC-B)              0~1810ºC     ± (0.5%+1)                      1ºC                          2K

TC (TC-E)              0~990ºC        ± (0.2%+1)                      1ºC                         2K

TC (TC-K)              0~1320ºC      ± (0.2%+1)                      1ºC                         2K

TC (TC-R)              0~1760ºC      ± (0.3%+1)                      1ºC                         2K

 TC (TC-J)              0~1190ºC      ± (0.3%+1)                      1ºC                         2K

TC (TC-T)               0~390ºC        ± (0.2%+1)                      1ºC                         2K

TC (TC-N)               0~1290ºC     ± (0.2%+1)                      1ºC                          2K

TC (WRe3/25)       0~2320ºC     ± (0.2%+1)                      1ºC                           2K

TC (WRe3/26)       0~2320ºC     ± (0.2%+1)                       1ºC                          2K

Warranty
As per brand policy

Application

Industrial uses
