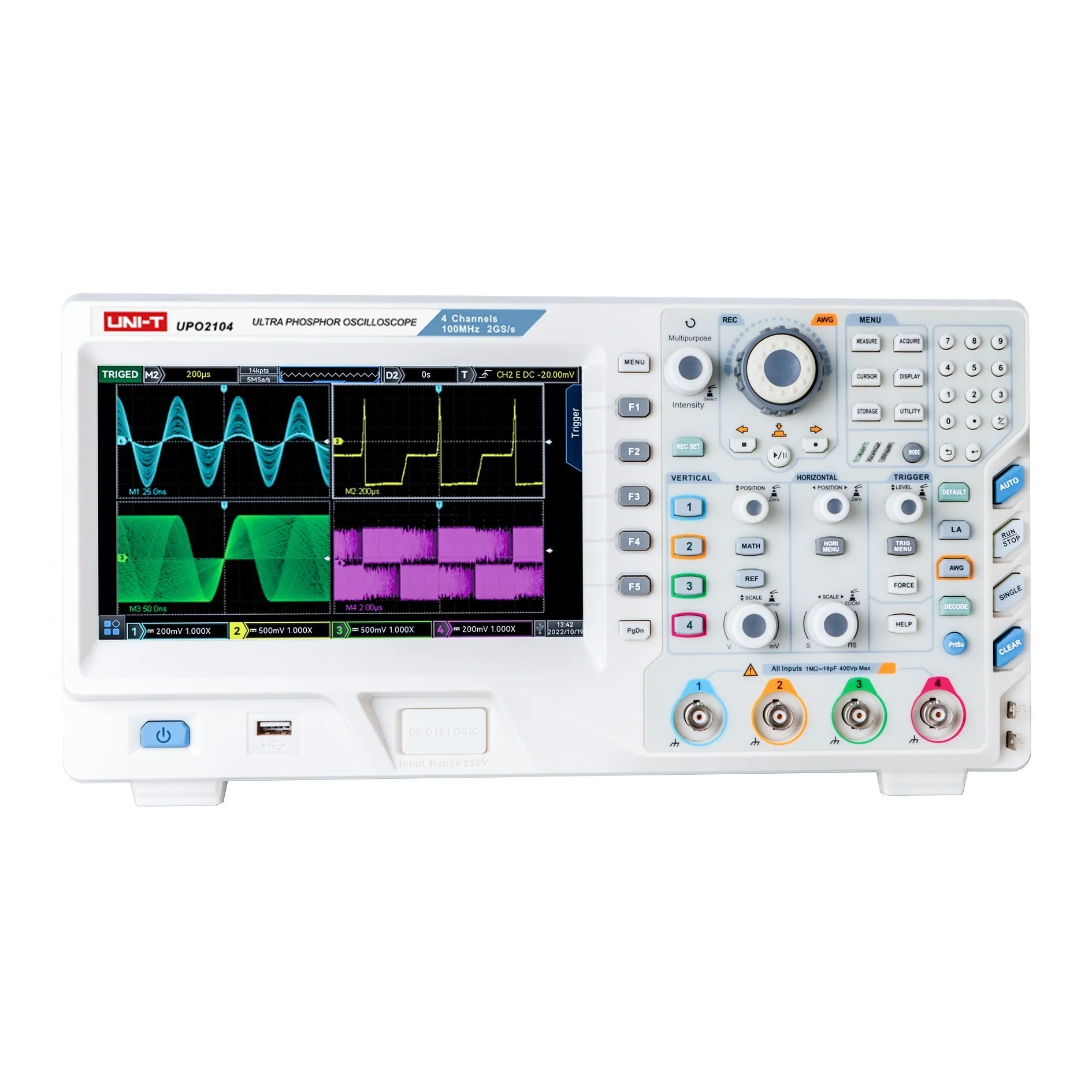

UNI-T UPO2104 digital phosphor oscilloscope 4 Channel, 100MHz

The UPO2000 series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster.

Waveform capture rate up to 1,000,000 wfms/s
Support Bode Plot loop test and analysis function
Hardware real-time waveform uninterrupted recording and analysis up to 120,000 frames
Waveform operation functions (+, -, ×, ÷, digital filtering, logic operation and advanced operation)
4M points enhanced FFT, supporting frequency setting, waterfall diagram, detection setting and mark measurement, etc.
Auto measurement of 36 waveform parameters
Multi-Scopes supports multi-channel independent trigger and fluorescent display
DVM supports multi-channel independent AC / DC true RMS measurement
Rich trigger functions: edge, pulse, video, slope, runt, over amplitude pulse, delay, timeout, duration, setup/hold, Nth edge and pattern trigger
Area trigger function, which can be used to capture accidental signals and observe complex signals
Protocol trigger and decoding function (optional)：RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay
Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display
8-inch 800×480 capacitive touch, supporting various gesture operations: click, slide, zoom, edit, drag, etc.
Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out、Pass/Fail), AWG, VGA
Support SCPI programmable instrument standard commands
Support web access and control
Bandwidth 100MHz
Channels 4
Real- Time Sample Rate: 2 GSa/s
MAX. Memory Depth 56 Mpts

Technical Documents - 1

Rs. 115,000.00 /each Save Rs. 16500 (15% Off)

Rs. 98,500.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	2171

Dispatched (in Days): Same day dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: China

2 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

MODEL UPO2104

BANDWIDTH 100MHz

ANALOG CHANNELS 4

REAL-TIME SAMPLE RATE 2GSa/s

MAX. MEMORY DEPTH 56Mpts

WAVEFORM CAPTURE RATE 1,000,000wfms/s

Warranty: As per Brand policy

Uses

It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc.
