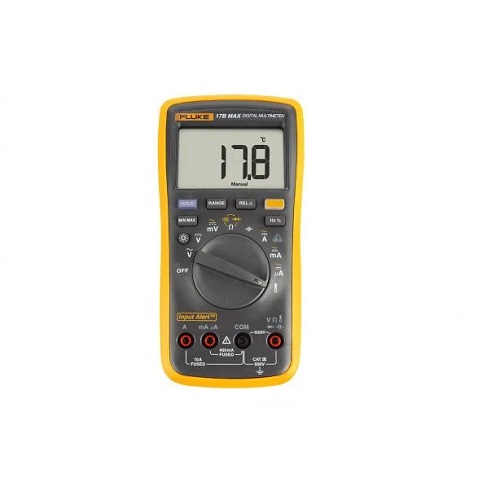

Fluke 17B MAX Digital Multimeter

SKU: FL17MA
Rs. 12,540.00 MRP Rs. 14,500.00 Save Rs. 1,960.00 (14% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece
Quantity to add



  • Audible and visual alarm for incorrect connections
  • Test leads with fines tips for circuit board testing
  • Simple interface to wake meter from sleep mode by activating any buttons
  • Voltage: 6000-count reading
  • Capacitance range: 2000uF
  • Safety rating: CATIII 600V
  • Frequency and temperature measurement



Product information

Everything you need to know

Technical Specifications

Maximum voltage between any Terminal and Earth Ground         600 V

Maximum differential voltage between V and COM terminals      1000V

Display (LCD)      6000 counts, updates 3/sec

Battery Type      2 AA, IEC LR6

Battery life          500 hours minimum

Temperature     Operating 0 °C to 40 °C.

Storage -30 °C to 60 °C

Relative Humidity             Operating Humidity Non-condensing

(<10 °C); ≤90 % RH at 10 °C to 30 °C.

≤75 % RH at 30 °C to 40 °C

Operating Humidity, 40 MΩ range            ≤80 % RH at 10 °C to 30 °C; ≤70 % RH at 30 °C to 40 °C

Altitude Operating 2000 m; Storage 12000 m.

Temperature Coefficient              0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse protection for current inputs            440 mA, 1000 V, fast blow, use only Fluke

specified parts. 11 A, 1000 V, fast blow,

use only Fluke specified parts.

Size (HxWxL)      183 mm x 91 mm x 49.5 mm

Weight 455 g

Ingress Protection           IP40

Safety   IEC 61010-1, IEC61010-2-030: CAT III

600 V, Pollution Degree 2

Warranty
As per brand policy

Recommended Uses

Industrial uses
