HTC Instruments

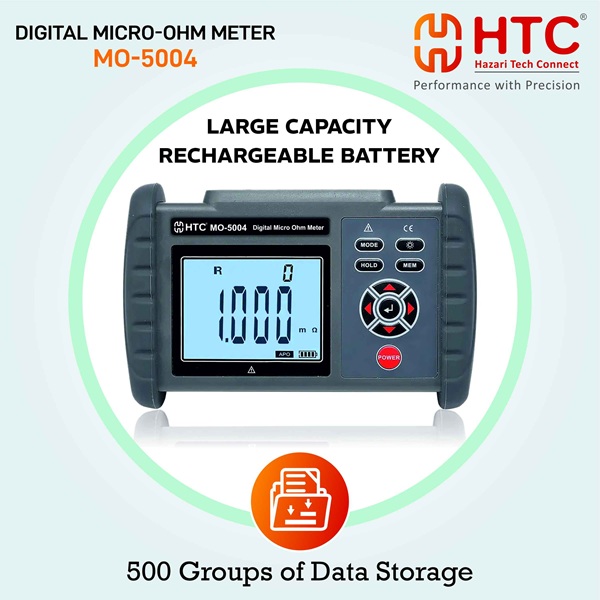

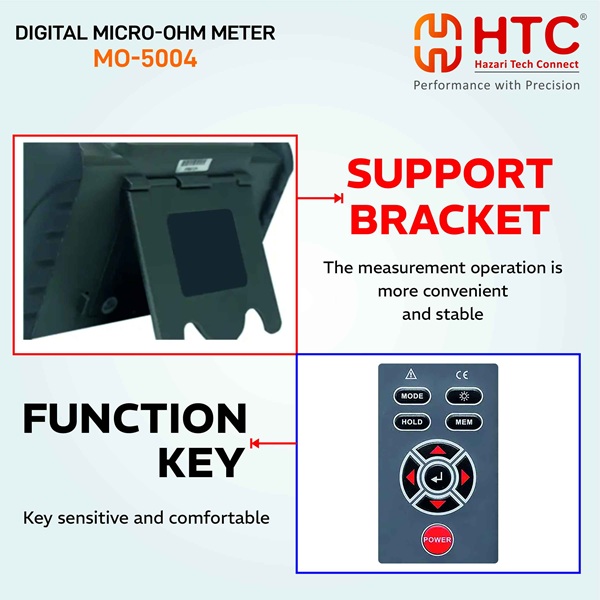

HTC Instruments MO-5004 Micro Ohm meter

SKU: MO2003
Rs. 15,180.00 MRP Rs. 19,800.00 Save Rs. 4,620.00 (24% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

Features

  • Large Lcd Display
  • Backlight
  • Resistance Measurement Range : 0.001mΩ~30.KΩ
  • Insulation Resistance : More Than 10 MΩ
  • (Between Circuit & Case 500v)
  • Pressure Resistance : Ac 3700v/Rms
  • (Between Circuit & Case)
  • 4 Wire Method Test
  • Data Hold
  • 500 Groups Data Storage
  • Data Review Function
  • Auto Power Off

Dimension : 187(H) x 119(W) x 50(D)mm

Product information

Everything you need to know

Technical Specifications



Range Resolution Accuracy Maximum test current
10µΩ ~100.00mΩ 10µΩ ± 0.1% FS ±20dgt 1.2A
100.1mΩ~1000.0mΩ 0.0001Ω 1.2A
1.001Ω~10.000Ω 0.001Ω 1.2A
10.01Ω~100.00Ω 0.01Ω 0.5A
100.1Ω~1000.00Ω 0.0001KΩ 0.05A
1.001KΩ~10.000KΩ 0.001KΩ 5mA
10.01KΩ-30.00 KΩ 0.01KKΩ 0.5mA



Warranty
1 year

What's in the Box

Accessories  4-Wire test lead x 1 Pair Shoulder strap x 1 Pc. User Manual & Battery x 6 Pcs.

Application

Electrical & Power Distribution Industry, Motor, Generator & Transformer Manufacturing, Automotive Industry
