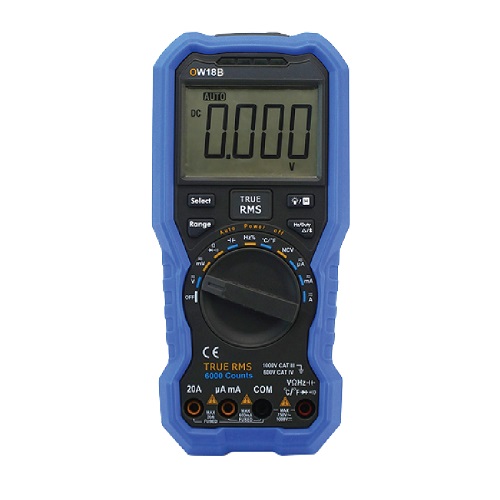

OWON OW18B 3-in-1 Smart Bluetooth Digital Multimeter

data-logger + multimeter + temperature meter
BLE 4.0 module supports wireless data transmission
3 5/6 - digit full scale reading
true RMS, and auto-scale function
super- portability
flashlight function
NCV (non-contact voltage) sensing supported
smart voice-reading
multi-device monitoring onto one display (via mobile app)
via CHART mode, the change trend analysis accessible
offline recording function (upto 7 days’ non-stop recording supported)
multi-OS compatible: Android OS, iOS, and Windows OS*

Technical Documents - 1

Rs. 5,000.00 /each Save Rs. 1805 (37% Off)

Rs. 3,195.00 /each (Incl GST-18%)

Quantity

Dispatched (in Days): Same day dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: China

188 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

		Measurement Range	Resolution	Accruacy
	DC Voltage	60.00mV / 600.0mV / 6.000V / 60.00V / 600.0V	0.01mV	±(0.5%+2-dig)
		1000V	1V	±(0.8%+2-dig)
	AC Voltage	600.0mV / 6.000V / 60.00V / 600.0V	1mV	±(0.8%+2-dig)
		750V	1V	±(1%+3-dig)
	μA	60.00uA / 600.0μA	0.01μA
DC Current	mA	60.00mA / 600.0mA	0.01mA	±(0.8%+2-dig)
	A	20.00A	0.01A	±(1.2%+3-dig)
	μA	60.00uA / 600.0μA	0.01μA
AC Current	mA	60.00mA / 600.0mA	0.01mA	±(1%+3-dig)
	A	20.00A	0.01A	±(1.5%+3-dig)
	Resistance	600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ	0.1Ω	±(0.8%+2-dig)
		60.00MΩ	0.01MΩ	±(2%+3-dig
	Capacitance	60.00nF / 600.0nF / 6.000μF / 60.00μF	0.01nF	±(2.5%+3-dig)
		600.0μF / 6.000mF / 60.00mF	0.1μF	±(3%+5-dig)
	Frequency	9.999Hz / 99,99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 99.9kHz / 9.999MHz	0.001Hz	±(0.8%+2-dig)
	Duty Ratio	0.1% - 99.9% (typical value: Vrms=1V, f=1kHz)	0.10%	±(1.2%+3-dig)
		0.1% - 9 9.9% (≥1kHz)		±(2.5%+3-dig)
	Temperature	(-50℃) - (+400℃)	1℃	±(2.5%+3-dig)
		(-58°F) - (+752°F)	1℉	±(4.5%+5-dig)
	Display	5999
	Frequency	(40 - 1000) Hz
	Shift Rate	3 times/s

Warranty: As per brand policy

Uses

Industrial uses, Automation, Prototype, Debug, Data logging
