MetroQ MTQ 4910 Advanced Benchtop LCR Meter

This series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety of measurement parameters into one body. It is convenient for users to carry out remote control with USB and RS232 and also perform the sorting of
components using handle. In function, it can not only adjust the output frequency and test level, but also record the value of components in the process of measurement. In the performance parameters, its basic accuracy reaches 0.2%.

Measurement frequency up to 10kHz
10 Points (100,120,200,400, 800, 1k, 2k, 8k, 10k)
Test level 100 ~ 2000mV
Support the measurement of DC resistance and electrolytic capacitor
Internal bias voltage output (1mV-1500mV)
Automatic identification of component measurement
3.5-inch TFT display, 5 and a half bits display
USB, RS232 communication interface, Handle sorting
Data recording function (maximum and minimum values, average value)
Support SCPI communication protocol
Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users.
Basic accuracy 0.2%
Manual and automatic range
Be equipped with open circuit and short circuit correction
Comparator has sorting and alarm function
Provide a variety of test ports

Rs. 34,999.00 /each Save Rs. 13379 (39% Off)

Rs. 21,620.00 /each (Incl GST-18%)

Quantity

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: China

Technical Specifications

Power voltage:	220V.AC/50Hz ±10%
Power consumption	: <10W
Display:	3.5” TFT LCD, resolution 480*320
Interfaces:	standard: RS232(or 485), USB Device, Handler ;optional :GPIB,USB Host
Service environment:	0°C-40°C
Sizes:	265mm105mm305mm (LWH)
Weight:	2.1 kg
Excitation source frequency	10 points (100,120,200,400,800,lk, 2k, 4k,8k,lOk)
Digits	Main parameter: 5 digits; secondary parameter: 5 digits
Parameter	Main parameter: L/C/R/Z; secondary parameter: x/D/Q/9/ESR
Range(L)	0.00lµH - 9999H
Range(C)	O.OOlpF - 9999µF
Range(R)	0.00010 - 99.99MO
Basic Accuracy	0.10%
Measurement Display Speed	2 times/second (slow), 5 times/second (medium speed), 10 times/second (fast)
Internal Bias	0-1500mV adjustable, lmV stepping
Test Level('{rms)	1oomv,300mV,600mV,lOOOmV,l500mV,2000mV
Correction Function	Open circuit correction, short circuit correction
Screening function	Tolerance range: -100% - +100%, with fixed points of 10%, 25% and 50%
Selection of comparator	Five gear sorting, third gear qualified, one gear failed, one ancillary gear
Communication Interface	Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

Warranty: 1 Year

Uses

Industrial uses

Technical Specifications
Uses

Power voltage:	220V.AC/50Hz ±10%
Power consumption	: <10W
Display:	3.5” TFT LCD, resolution 480*320
Interfaces:	standard: RS232(or 485), USB Device, Handler ;optional :GPIB,USB Host
Service environment:	0°C-40°C
Sizes:	265mm105mm305mm (LWH)
Weight:	2.1 kg
Excitation source frequency	10 points (100,120,200,400,800,lk, 2k, 4k,8k,lOk)
Digits	Main parameter: 5 digits; secondary parameter: 5 digits
Parameter	Main parameter: L/C/R/Z; secondary parameter: x/D/Q/9/ESR
Range(L)	0.00lµH - 9999H
Range(C)	O.OOlpF - 9999µF
Range(R)	0.00010 - 99.99MO
Basic Accuracy	0.10%
Measurement Display Speed	2 times/second (slow), 5 times/second (medium speed), 10 times/second (fast)
Internal Bias	0-1500mV adjustable, lmV stepping
Test Level('{rms)	1oomv,300mV,600mV,lOOOmV,l500mV,2000mV
Correction Function	Open circuit correction, short circuit correction
Screening function	Tolerance range: -100% - +100%, with fixed points of 10%, 25% and 50%
Selection of comparator	Five gear sorting, third gear qualified, one gear failed, one ancillary gear
Communication Interface	Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

Warranty: 1 Year

Industrial uses

Related Products

MS5308 Digital LCR Meter with USB interface

by Mastech

Rs. 24,957.00

21% Off

Rs. 19,965.00

Save Rs. 4992!

Min Qty: 1 pieces

MS5308 Digital LCR Meter with USB interface

by Mastech

Rs. 24,957.00

21% Off

Rs. 19,965.00

Save Rs. 4992!

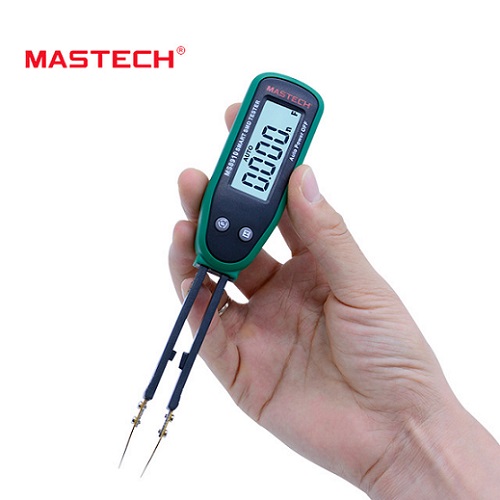

MS 8910 Smart SMD Tester

by Mastech

Rs. 3,000.00

33% Off

Rs. 2,030.00

Save Rs. 970!

Min Qty: 1 pieces

MS 8910 Smart SMD Tester

by Mastech

Rs. 3,000.00

33% Off

Rs. 2,030.00

Save Rs. 970!

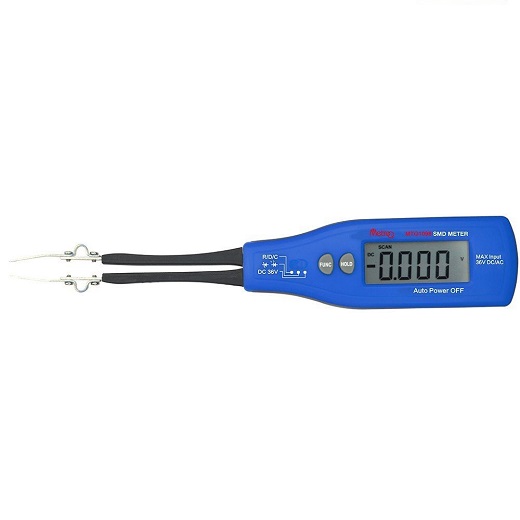

MTQ 1098 SMD Smart Tweezer Tester

by MetroQ

Rs. 2,000.00

24% Off

Rs. 1,530.00

Save Rs. 470!

Min Qty: 1 pieces

MTQ 1098 SMD Smart Tweezer Tester

by MetroQ

Rs. 2,000.00

24% Off

Rs. 1,530.00

Save Rs. 470!

MTQ 4070 LCR Meter

by MetroQ

Rs. 2,750.00

18% Off

Rs. 2,265.00

Save Rs. 485!

Min Qty: 1 pieces

MTQ 4070 LCR Meter

by MetroQ

Rs. 2,750.00

18% Off

Rs. 2,265.00

Save Rs. 485!

Digital LCR- D Meter MTQ 8C

by MetroQ

Rs. 15,000.00

19% Off

Rs. 12,275.00

Save Rs. 2725!

Min Qty: 1 pieces

Digital LCR- D Meter MTQ 8C

by MetroQ

Rs. 15,000.00

19% Off

Rs. 12,275.00

Save Rs. 2725!

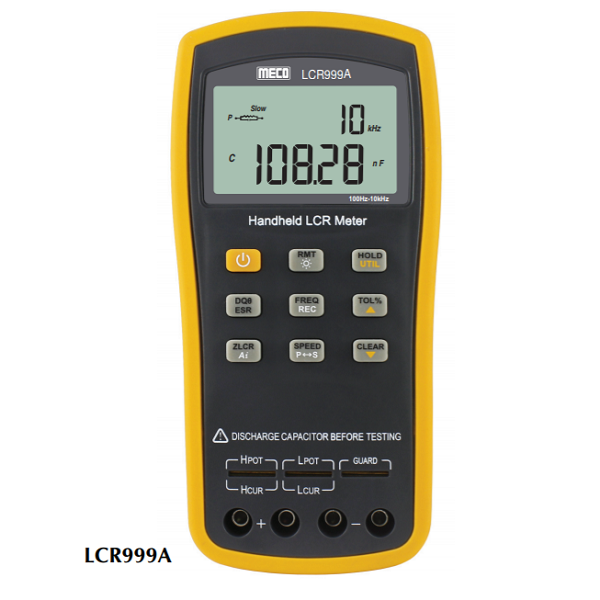

LCR-999A Digital LCR Meter

by MECO

Rs. 39,000.00

22% Off

Rs. 30,550.00

Save Rs. 8450!

Min Qty: 1 pieces

LCR-999A Digital LCR Meter

by MECO

Rs. 39,000.00

22% Off

Rs. 30,550.00

Save Rs. 8450!

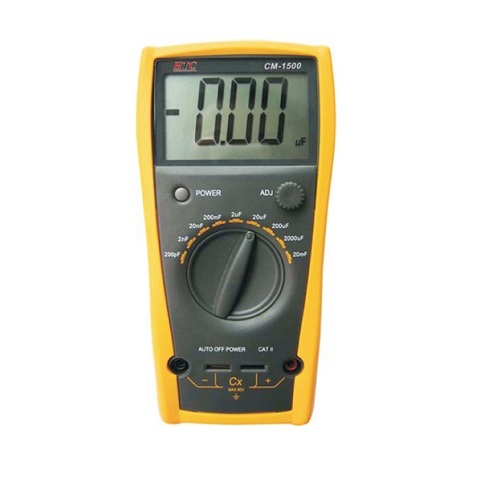

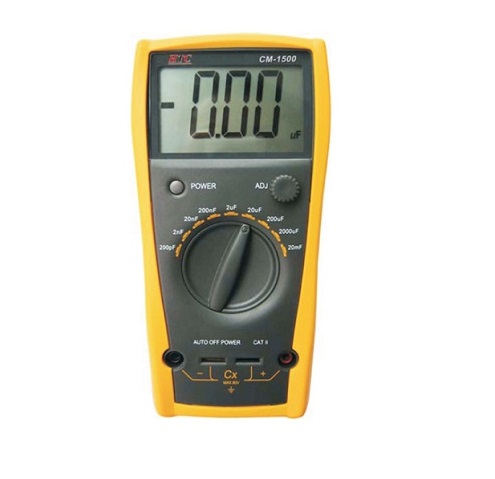

CM-1500 Capacitance Meter

by HTC Instruments

Rs. 1,782.00

21% Off

Rs. 1,425.00

Save Rs. 357!

Min Qty: 1 pieces

CM-1500 Capacitance Meter

by HTC Instruments

Rs. 1,782.00

21% Off

Rs. 1,425.00

Save Rs. 357!

CM-1501 Capacitance Meter

by HTC Instruments

Rs. 2,036.00

20% Off

Rs. 1,630.00

Save Rs. 406!

Min Qty: 1 pieces

CM-1501 Capacitance Meter

by HTC Instruments

Rs. 2,036.00

20% Off

Rs. 1,630.00

Save Rs. 406!

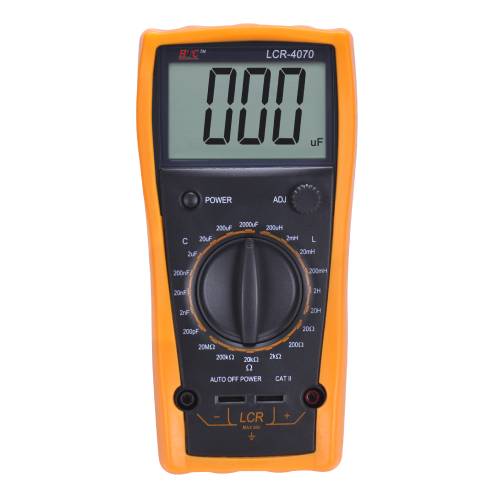

LCR-4070 LCR Meter

by HTC Instruments

Rs. 2,944.00

10% Off

Rs. 2,650.00

Save Rs. 294!

Min Qty: 1 pieces

LCR-4070 LCR Meter

by HTC Instruments

Rs. 2,944.00

10% Off

Rs. 2,650.00

Save Rs. 294!

MO-5000 Digital Milliohm Meter

by HTC Instruments

Rs. 9,735.00

20% Off

Rs. 7,800.00

Save Rs. 1935!

Min Qty: 1 pieces

MO-5000 Digital Milliohm Meter

by HTC Instruments

Rs. 9,735.00

20% Off

Rs. 7,800.00

Save Rs. 1935!

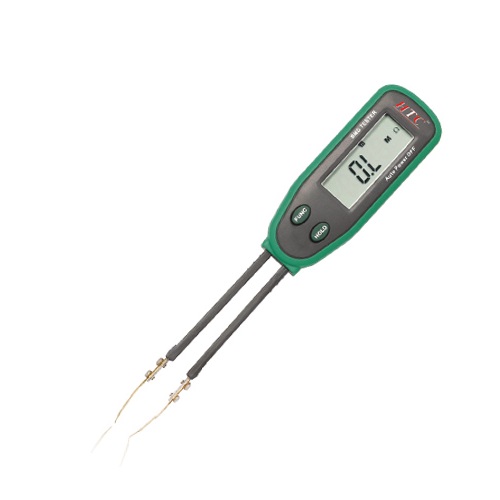

SMD TESTER Pen RC Meter

by HTC Instruments

Rs. 2,224.00

20% Off

Rs. 1,780.00

Save Rs. 444!

Min Qty: 1 pieces

SMD TESTER Pen RC Meter

by HTC Instruments

Rs. 2,224.00

20% Off

Rs. 1,780.00

Save Rs. 444!

MTQ-1500 Digital Capacitance Meter

by MetroQ

Rs. 2,050.00

18% Off

Rs. 1,699.00

Save Rs. 351!

Min Qty: 1 pieces

MTQ-1500 Digital Capacitance Meter

by MetroQ

Rs. 2,050.00

18% Off

Rs. 1,699.00

Save Rs. 351!

MTQ Micro 3.5 Micro Ohm Meter

by MetroQ

Rs. 6,750.00

12% Off

Rs. 5,950.00

Save Rs. 800!

Min Qty: 1 pieces

MTQ Micro 3.5 Micro Ohm Meter

by MetroQ

Rs. 6,750.00

12% Off

Rs. 5,950.00

Save Rs. 800!

UT612 LCR/ESR Meter

by UNI-T

Rs. 16,500.00

22% Off

Rs. 12,950.00

Save Rs. 3550!

Min Qty: 1 pieces

UT612 LCR/ESR Meter

by UNI-T

Rs. 16,500.00

22% Off

Rs. 12,950.00

Save Rs. 3550!

MS8911 - Smart SMD Tester (R/L/C)

by Mastech

Rs. 4,999.00

14% Off

Rs. 4,325.00

Save Rs. 674!

Min Qty: 1 pieces

MS8911 - Smart SMD Tester (R/L/C)

by Mastech

Rs. 4,999.00

14% Off

Rs. 4,325.00

Save Rs. 674!

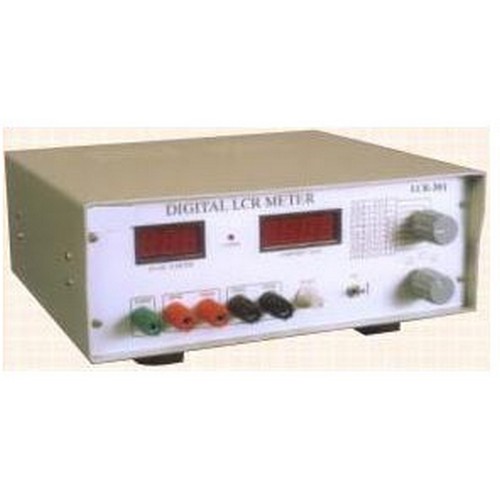

LCR 301 Digital LCR Bridge Meter

by MetroQ

Rs. 7,400.00

18% Off

Rs. 6,140.00

Save Rs. 1260!

Min Qty: 1 pieces

LCR 301 Digital LCR Bridge Meter

by MetroQ

Rs. 7,400.00

18% Off

Rs. 6,140.00

Save Rs. 1260!

UT116C Smart SMD Tweezer

by UNI-T

Rs. 3,500.00

40% Off

Rs. 2,100.00

Save Rs. 1400!

Min Qty: 1 pieces

UT116C Smart SMD Tweezer

by UNI-T

Rs. 3,500.00

40% Off

Rs. 2,100.00

Save Rs. 1400!

UT116A SMD Tester

by UNI-T

Rs. 2,500.00

8% Off

Rs. 2,300.00

Save Rs. 200!

Min Qty: 1 pieces

UT116A SMD Tester

by UNI-T

Rs. 2,500.00

8% Off

Rs. 2,300.00

Save Rs. 200!

UT622E Professional LCR Meter

by UNI-T

Rs. 45,000.00

4% Off

Rs. 43,500.00

Save Rs. 1500!

Min Qty: 1 pieces

UT622E Professional LCR Meter

by UNI-T

Rs. 45,000.00

4% Off

Rs. 43,500.00

Save Rs. 1500!

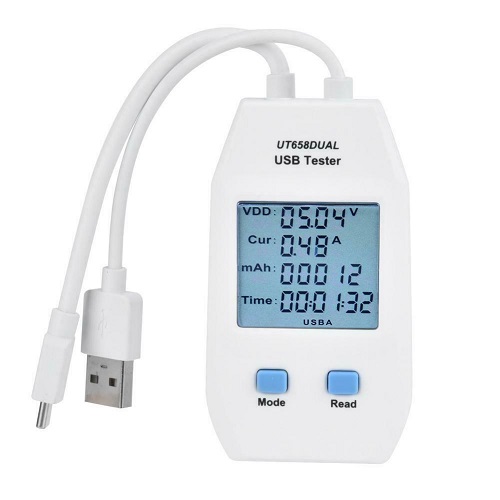

UT658DUAL USB Testers- Type A & C

by UNI-T

Rs. 1,750.00

23% Off

Rs. 1,350.00

Save Rs. 400!

Min Qty: 1 pieces

UT658DUAL USB Testers- Type A & C

by UNI-T

Rs. 1,750.00

23% Off

Rs. 1,350.00

Save Rs. 400!

MTQ 4910 Advanced Benchtop LCR Meter

by MetroQ

Rs. 34,999.00

39% Off

Rs. 21,620.00

Save Rs. 13379!

Min Qty: 1 pieces

MTQ 4910 Advanced Benchtop LCR Meter

by MetroQ

Rs. 34,999.00

39% Off

Rs. 21,620.00

Save Rs. 13379!

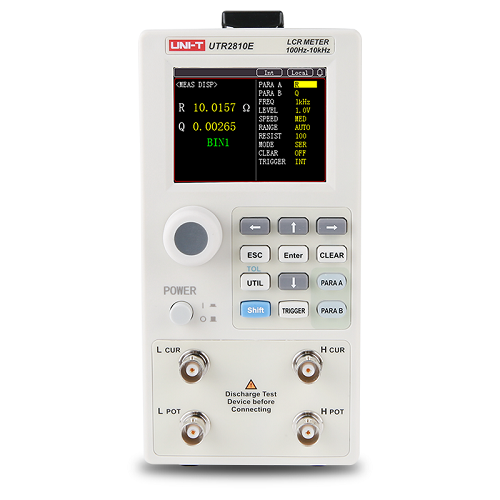

UTR2810E Benchtop LCR Meter

by UNI-T

Rs. 39,500.00

24% Off

Rs. 30,250.00

Save Rs. 9250!

Min Qty: 1 pieces

UTR2810E Benchtop LCR Meter

by UNI-T

Rs. 39,500.00

24% Off

Rs. 30,250.00

Save Rs. 9250!

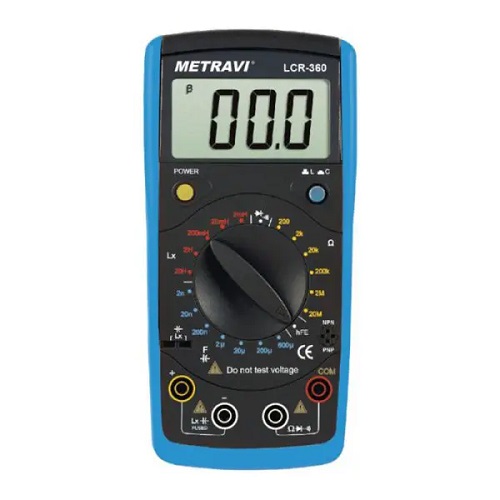

LCR-360 Digital Hand-held LCR Meter

by Metravi

Rs. 5,200.00

10% Off

Rs. 4,700.00

Save Rs. 500!

Min Qty: 1 pieces

LCR-360 Digital Hand-held LCR Meter

by Metravi

Rs. 5,200.00

10% Off

Rs. 4,700.00

Save Rs. 500!

MO-5004 Micro Ohm meter

by HTC Instruments

Rs. 40,000.00

63% Off

Rs. 15,000.00

Save Rs. 25000!

Min Qty: 1 pieces

MO-5004 Micro Ohm meter

by HTC Instruments

Rs. 40,000.00

63% Off

Rs. 15,000.00

Save Rs. 25000!

PVB-805 Pen Vibration Meter

by HTC Instruments

Rs. 13,000.00

16% Off

Rs. 11,045.00

Save Rs. 1955!

Min Qty: 1 pieces

PVB-805 Pen Vibration Meter

by HTC Instruments

Rs. 13,000.00

16% Off

Rs. 11,045.00

Save Rs. 1955!

TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1

by FNIRSI

Rs. 8,000.00

25% Off

Rs. 6,050.00

Save Rs. 1950!

Min Qty: 1 pieces

TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1

by FNIRSI

Rs. 8,000.00

25% Off

Rs. 6,050.00

Save Rs. 1950!

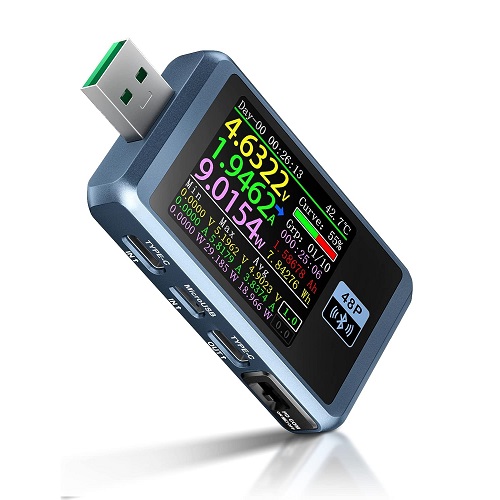

FNB48P USB Voltage Current Tester
