UNI-T Authorized brand

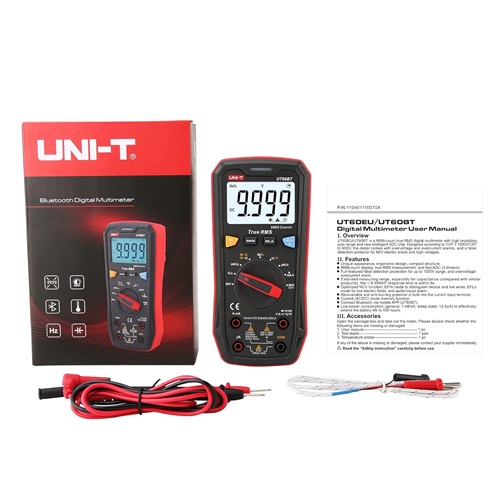

UNI-T UT60BT BlueTooth True RMS Digital Multimeter

SKU: UT60BT
Rs. 5,225.00 MRP Rs. 5,495.00 Save Rs. 270.00 (5% off) Inclusive of GST-18%
In Stock (35 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



UT60BT digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection & many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with a backlight enables you to detect equipment quickly even in dark places.

This CE-certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

Features

  • Bluetooth
  • Duty cycle
  • Diode/Continuity test
  • Temperature
  • Analog bar/Data hold
  • Backlight/Relative mode
  • Auto/Manual range
  • Low battery indication
  • Three-color LED light indicator.

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Product information

Everything you need to know

Technical Specifications



Specification Range UT60BT
DC Voltage 9.999mV/99.99mV/999.9mV/ ±(0.5%+3)
9.999V/99.99V/999.9V
AC Voltage 9.999mV/99.99mV/999.9mV/ ±(0.8%+3)
9.999V/99.99V/999.9V
DC Current 999.9uA/999.9mA/9.999A/10A ±(0.8%+3)
AC Current 999.9uA/999.9mA/9.999A/10A ±(1.0%+3)
Resistance 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2)
Capacitor 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF ±(4.0%+5)
Frequency 99.99Hz～9.999MHz ±(0.1%+5)
Duty Cycle 0.1～99.9% ±(3%+5)
Temperatue –40℃～1000℃/–40°F～1832°F ±4℃/±5℉
Features
Bluetooth   √
Display Count   9999
Auto Range   √
REL   √
NCV   √
Diode   √
Continuity Test   √
Acousto-optic Indication (NCV/continuity/battery power)   √
Low Battery Indication ≤3.6V √
Data Hold   √
Auto Power Off 15Min √
Operation Temperature 0℃～40℃
Safety CAT II 1000V/CAT III 600V
Warranty
1 Year

Recommended Uses

Industrial grade multimeter with Bluetooth connectivity
