Bakon Authorized brand

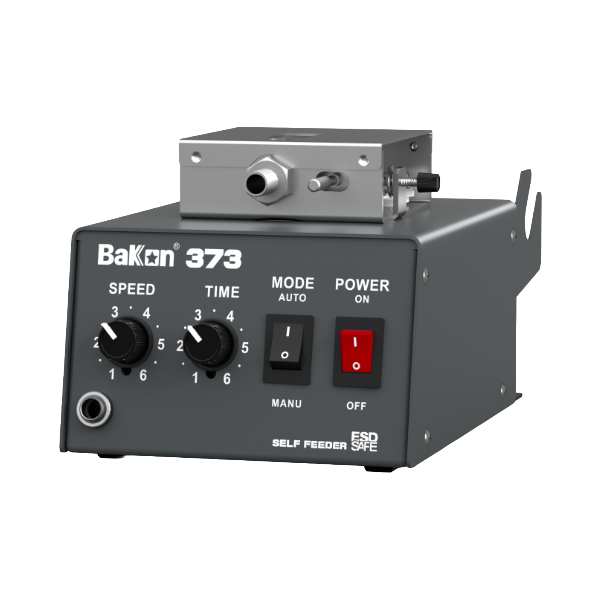

Bakon BK373 Automatic Solder feeding system

SKU: BK373ST
Rs. 8,795.00 MRP Rs. 13,200.00 Save Rs. 4,405.00 (34% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

Bakon 373 Automatic tin-out matching system, suitable for a variety of soldering irons and soldering stations, to achieve one-hand operation;

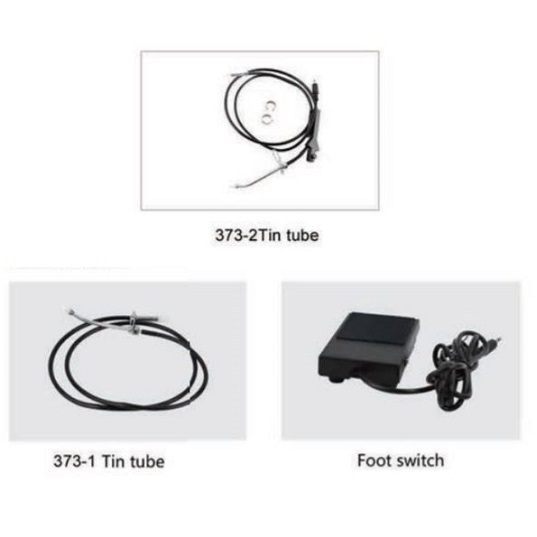

Automatic tin-out function, pull-code switch design, tin-out speed, tin output, tin-out interval are adjustable, and Adjust the tin back function to reduce welding waste. There are two kinds of automatic and manual tinning methods, which can be equipped with a foot tin switch and a manual tin switch.

*Note- Colors may vary as per stock availability.

Product information

Everything you need to know

Technical Specifications

Model No. BK373

Voltage 220VAC,50Hz

Feeder speed 14-35mm/s

Motor power DC24V 3.2W

Sending amount of tin: 0-120mm

Return amount of tin adjustable

Tin wire diameter: 0.6    0.65    0.8     1.0    1.2     1.6

SIZE 215*107*110mm

Weight 1.7KG

Warranty
1 Year

Recommended Uses

Industrial use feeder station ideal to speed up production process
