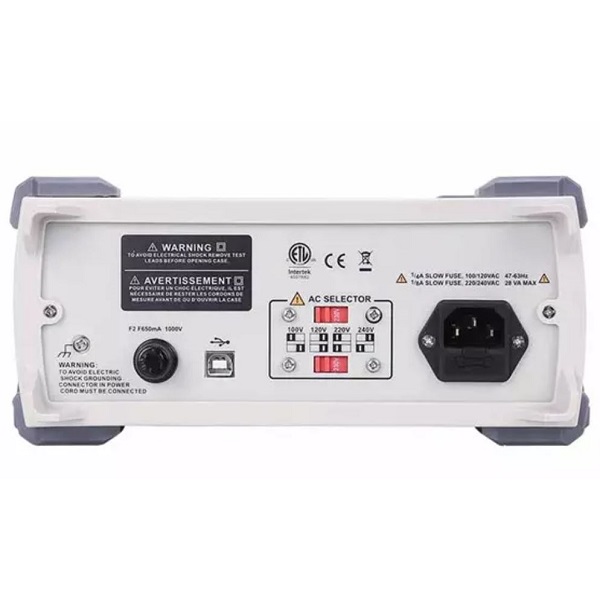

UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms

The UT8803E from UNI-T is a fully-featured true-RMS 6000 counts benchtop multimeter that in addition to temperature and frequency is also capable of measuring capacitance and inductance including the Q-factor. This multimeter comes with free PC software with which you can record data and plot it into a graph.

Features:

Automatic scale, True rms reading
Diode / transistor
Measuring thyristor SCR
Inductance measurement
USB interface
Data retention, Max / Min
Continuity buzzer

The UNI-T UT8803E multimeter comes with the following accessories::

UT-S03A socket
Test Lead
Alligator clip
USB interface cable
Power Cable

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Technical Documents - 1

Rs. 25,500.00 /each Save Rs. 8700 (35% Off)

Rs. 16,800.00 /each (Incl GST-18%)

Technical Specifications

DC Voltage	0.1 mV - 1000 V ±(0.5% + 2)
AC Voltage	0.1 mV - 750 V ±(0.6% + 5)
DC Current	0.1 μA - 10A ±(0.8% + 3)
AC Current	0.1 μA - 10A ±(1.0% + 5)
Resistance	0.1 Ω - 60 MΩ ±(0.8% + 5)
Temperature	-40 °C - 1000 °C ±(2% + 5)
Capacitance	0.001 nF - 6 mF ±(2.5% + 5)
Inductance	0.1μH - 100 H ±(2.5% + 5)
Frequency	0.1 Hz - 20 MHz ±(0.1% + 10)
True-RMS	Yes
Extra functions	duty cycle, continuity test, diode test, hFE, thyristor measurement
Power	AC 100-240V 50Hz
Display	6000 counts, 4.5" LCD
Refresh rate	3 Hz
Connectivity	USB interface
Safety	CAT.II 600V
Weight	3100 g
Dimensions	320 x 265 x 110 mm

Warranty: 1 Year

Uses

Industrial use Benchtop Multimeter

Technical Specifications
Uses

DC Voltage	0.1 mV - 1000 V ±(0.5% + 2)
AC Voltage	0.1 mV - 750 V ±(0.6% + 5)
DC Current	0.1 μA - 10A ±(0.8% + 3)
AC Current	0.1 μA - 10A ±(1.0% + 5)
Resistance	0.1 Ω - 60 MΩ ±(0.8% + 5)
Temperature	-40 °C - 1000 °C ±(2% + 5)
Capacitance	0.001 nF - 6 mF ±(2.5% + 5)
Inductance	0.1μH - 100 H ±(2.5% + 5)
Frequency	0.1 Hz - 20 MHz ±(0.1% + 10)
True-RMS	Yes
Extra functions	duty cycle, continuity test, diode test, hFE, thyristor measurement
Power	AC 100-240V 50Hz
Display	6000 counts, 4.5" LCD
Refresh rate	3 Hz
Connectivity	USB interface
Safety	CAT.II 600V
Weight	3100 g
Dimensions	320 x 265 x 110 mm
