UNI-T UT181A True RMS Datalogging Multimeter

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

Trend capture
Data logging: 20000
Data comparison
3.5-inch 64k color TFT LCD
Dual temperature measurement
Low pass filter
2200mAh Li-ion battery
Real time and date
Peak hold
Bluetooth/APP w Optional Accessory
USB interface cable /PC software CD
IP65

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Technical Documents - 1

Rs. 40,500.00 /each Save Rs. 5505 (14% Off)

Rs. 34,995.00 /each (Incl GST-18%)

Quantity

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: China

10 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Specifications	Range	UT181A
DC voltage (V)	1000V	±(0.025%+5)
AC voltage (V)	1000V	±(0.3%+30)
DC current (A)	10A	±(0.08%+10)
AC current (A)	10A	±(0.6%+20)
Resistance (Ω)	60MΩ	±(0.05%+2)
Admittance (nS)	60nS	±(2%+10)
Capacitance (F)	60mF	±(2%+5)
Frequency (Hz)	10Hz~60MHz	±(0.01%+5)
Temperature (°C)	-40°C~1000°C	±(1%+30)
Temperature (°F)	-40°F~1832°F	±(1.5%+50)
Features
Display count		60000
Auto/Manual range		√
Bandwidth (Hz)	100kHz	√
AC+DC/Continuity buzzer		√
Low pass filter	1kHz	√
dBV/dBm		√
Diode	Around 3V	√
Duty cycle	10%~90%	√
Dual temperature measurement	T1, T2, T1-T2, T2-T1	√
Data hold/Peak hold		√
Relative mode		√
Data logging	20000	√
Trend capture		√
MAX/MIN/AVG		√
Data time display/Data comparison		√
Backlight adjustment		√
Analog bar graph/USB interface		√
Mis-plug alarm		√
Battery indication/Auto power off		√
Rechargeable battery		√
Input protection		√
Input impedance for DCV	≥10MΩ	√
General Characteristics
Power	Li-ion battery: 7.4V 2200mAh
Display	3.5-inch 64K color TFT LCD (320 x 240)
Product color	Red and grey
Product net weight	638.6g
Product size	225mm x 103mm x 59mm

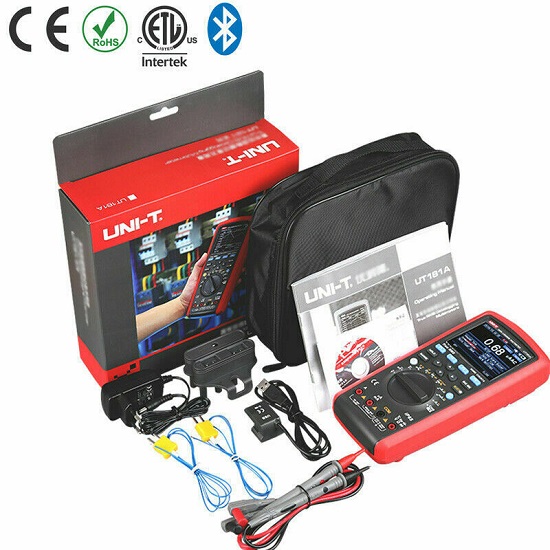

Standard accessories	Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable

Warranty: 1 Year

Uses

Industrial use datalogging multimeter

Technical Specifications
Uses

Specifications	Range	UT181A
DC voltage (V)	1000V	±(0.025%+5)
AC voltage (V)	1000V	±(0.3%+30)
DC current (A)	10A	±(0.08%+10)
AC current (A)	10A	±(0.6%+20)
Resistance (Ω)	60MΩ	±(0.05%+2)
Admittance (nS)	60nS	±(2%+10)
Capacitance (F)	60mF	±(2%+5)
Frequency (Hz)	10Hz~60MHz	±(0.01%+5)
Temperature (°C)	-40°C~1000°C	±(1%+30)
Temperature (°F)	-40°F~1832°F	±(1.5%+50)
Features
Display count		60000
Auto/Manual range		√
Bandwidth (Hz)	100kHz	√
AC+DC/Continuity buzzer		√
Low pass filter	1kHz	√
dBV/dBm		√
Diode	Around 3V	√
Duty cycle	10%~90%	√
Dual temperature measurement	T1, T2, T1-T2, T2-T1	√
Data hold/Peak hold		√
Relative mode		√
Data logging	20000	√
Trend capture		√
MAX/MIN/AVG		√
Data time display/Data comparison		√
Backlight adjustment		√
Analog bar graph/USB interface		√
Mis-plug alarm		√
Battery indication/Auto power off		√
Rechargeable battery		√
Input protection		√
Input impedance for DCV	≥10MΩ	√
General Characteristics
Power	Li-ion battery: 7.4V 2200mAh
Display	3.5-inch 64K color TFT LCD (320 x 240)
Product color	Red and grey
Product net weight	638.6g
Product size	225mm x 103mm x 59mm
Standard accessories	Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable

Warranty: 1 Year

Industrial use datalogging multimeter
