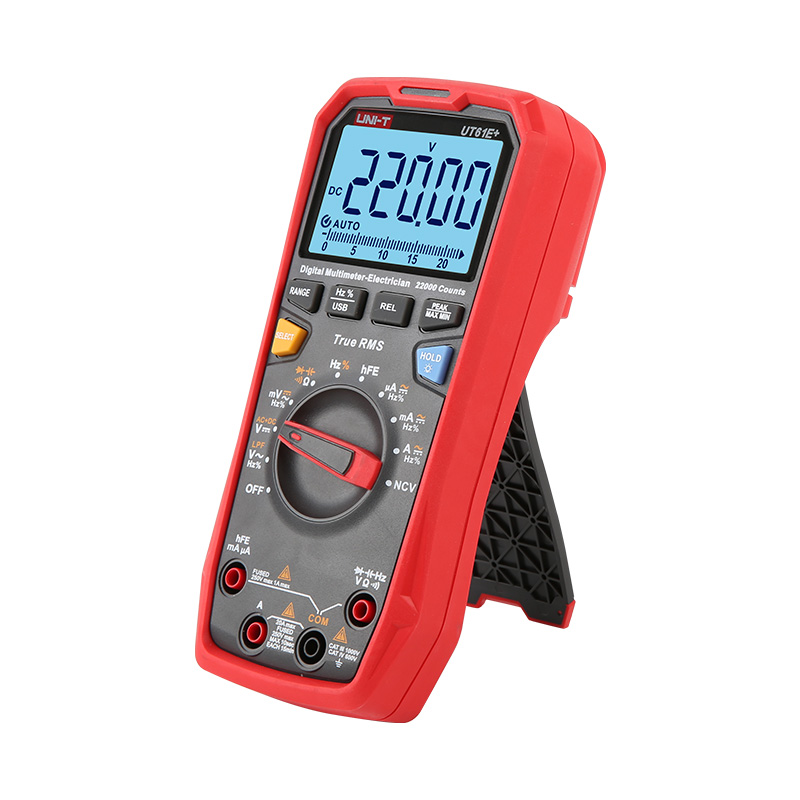

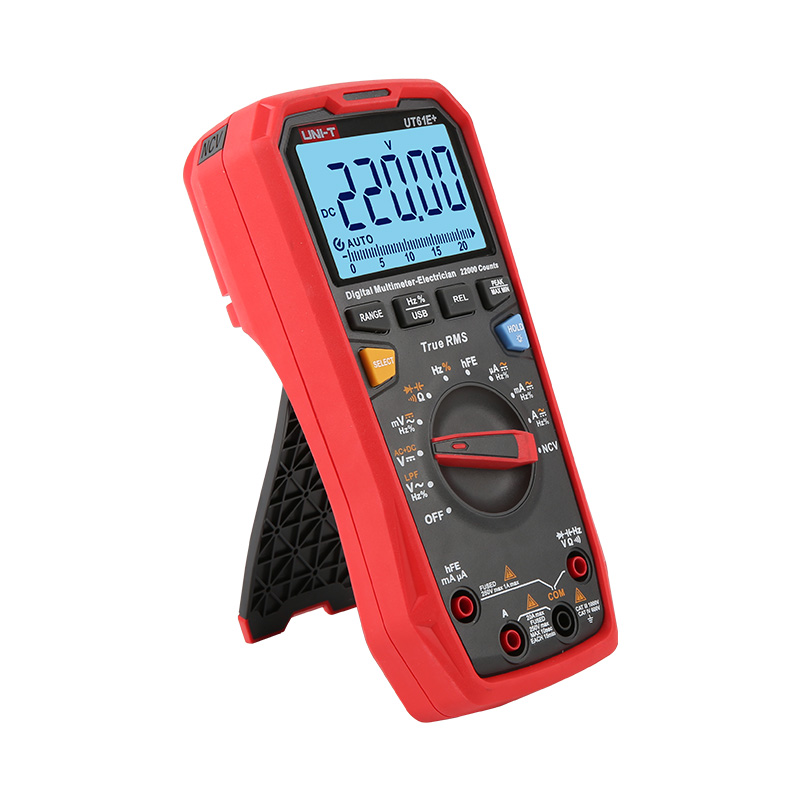

UNI-T UT61E+ True RMS Digital Multimeter

SKU: unit7 5.0 (1 Reviews)
Rs. 9,499.00 MRP Rs. 10,450.00 Save Rs. 951.00 (10% off) Inclusive of GST-18%
In Stock (18 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

UT61E+ series are reliable true RMS digital multimeters with display counts 22,000, It can measure up to 1000V AC/DC.  Equipped with audible and visible alarm, this series can provide warning especially when measuring high voltage/current.

  • True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV (audible/visual alarm)
  • LPF ACV
  • ACV+DCV
  • Transistor hFE
  • Peak Hold

Standard accessories Battery, gold plated test leads, USB cable, multi-purpose socket, English manual

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Product information

Everything you need to know

Reviews (1)

Technical Specifications

- Safety ratings CAT III 1000V/CAT IV 600V
- AC voltage (V) 1000V ±(0.8%＋10)
- DC voltage (V) 1000V ±(0.05%＋5)
- AC current (A) 20A ±(0.8%＋10)
- DC current (A) 20A ±(0.5%＋10)
- Resistance (Ω) 220MΩ ±(0.5%＋10)
- Capacitance (F) 220mF ±(3%＋5)
- Frequency (Hz) 220MHz ±(0.01%＋5)
- Duty cycle (%) 0.1%~99.9% ±(2%＋5)
- Display count 　 22000
- Bandwidth (Hz) 　 40~10kHz
- LPF ACV 　 √
- ACV+DCV 　 √
- Transistor hFE 　 √
- Peak Hold 　 √
- Analog bar 　 46
- Power 1.5V battery (R03) x 4
- Product net weight 350g
- Product size 190mm x 90mm x 50mm
- Optional accessories Bluetooth/APP

Warranty
As Per UNI-T Policy- 1 Year

Recommended Uses

Industrial grade multimeter with datalogging capabilities
