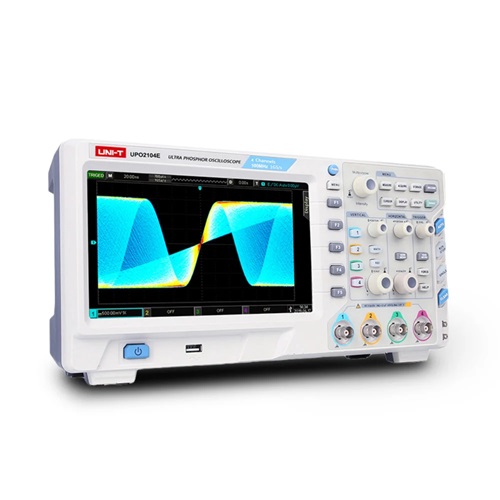

UNI-T UPO2104E Digital Oscilloscopes

The UPO2000 series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster.

• Waveform capture rate up to 1,000,000 wfms/s
• Support Bode Plot loop test and analysis function
• Hardware real-time waveform uninterrupted recording and analysis up to 120,000 frames
• Waveform operation functions (+, -, ×, ÷, digital filtering, logic operation and advanced operation)
• 4M points enhanced FFT, supporting frequency setting, waterfall diagram, detection setting and mark measurement, etc.
• Auto measurement of 36 waveform parameters
• Multi-Scopes supports multi-channel independent trigger and fluorescent display
• DVM supports multi-channel independent AC / DC true RMS measurement
• Rich trigger functions: edge, pulse, video, slope, runt, over amplitude pulse, delay, timeout,    duration, setup/hold, Nth edge and pattern trigger
• Area trigger function, which can be used to capture accidental signals and observe complex signals
• Protocol trigger and decoding function (optional)：RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay
• Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display
• 8-inch 800×480 capacitive touch, supporting various gesture operations: click, slide, zoom, edit, drag, etc.

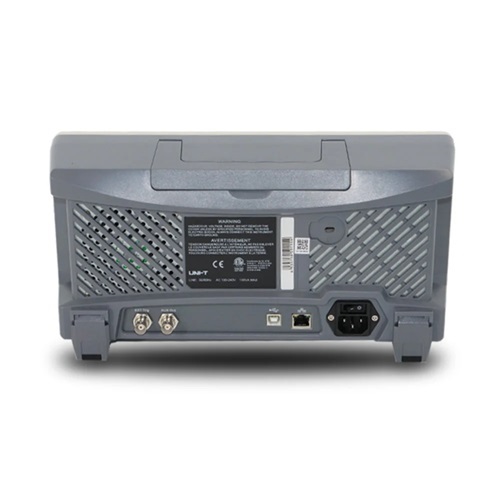

• Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out、Pass/Fail), AWG, VGA
• Support SCPI programmable instrument standard commands
• Support web access and control
• Channels: 4 Analog
• REAL-TIME SAMPLE RATE : 1GSa/s
• Rise time: ≤3.5ns
• Memory depth: 56Mpts
• Waveform capture rate: 80,000wfms/s
