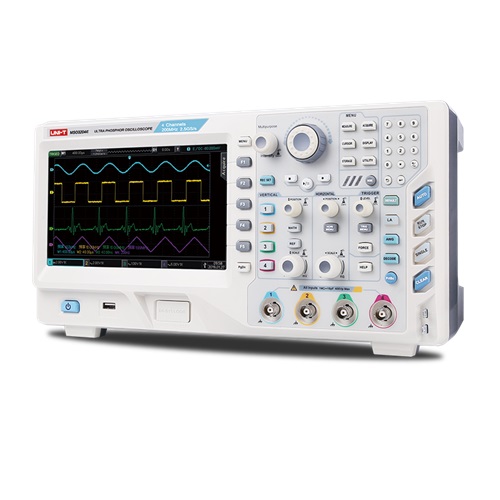

UNI-T MSO3254E Mixed Signal Oscilloscope

The MSO/UPO3000E series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor 2.0 technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.

Channels:4
Bandwidth:250MHz
Real time sample rate: 2.5GSa/s
Brand new interactive experience
Ultra-high capture rate
Maximum memory depth up to 250Mpts
Rich trigger function
Full memory hardware decoding
Area trigger
AWG Function Arbitrary Waveform Generator
Bode plot

Technical Documents - 1

Add to Quotations

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

Technical Specifications

Model Number MSO3254E

Bandwidth 250MHz

Channels 4 Analog + 16 Digital

Real-Time Sample Rate 2.5GSa/s

Rise Time ≤1ns

Memory Depth 250Mpts

Waveform capture rate 1,000,000wfms/s

Input impedance(analog channel) （1MΩ± 2%）||（18 pF± 3 pF）

Input impedance(Digital Channel) （101 kΩ±1%）||（9 pF ± 1 pF）

Waveform Generator No

Display 8-inch 800x480 capacitive touch display

Shipping Dimensions (L x W x H) 370mm×185mm×115mm

Shipping Weight 4.5 kg

Documents English download guide, multi-language safety manual, calibration report (COC)

Included Accessories Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15)

Warranty: As per Brand policy

Uses

Industrial uses

Technical Specifications
Uses

Model Number MSO3254E

Bandwidth 250MHz

Channels 4 Analog + 16 Digital

Real-Time Sample Rate 2.5GSa/s

Rise Time ≤1ns

Memory Depth 250Mpts

Waveform capture rate 1,000,000wfms/s

Input impedance(analog channel) （1MΩ± 2%）||（18 pF± 3 pF）

Input impedance(Digital Channel) （101 kΩ±1%）||（9 pF ± 1 pF）

Waveform Generator No

Display 8-inch 800x480 capacitive touch display

Shipping Dimensions (L x W x H) 370mm×185mm×115mm

Shipping Weight 4.5 kg

Documents English download guide, multi-language safety manual, calibration report (COC)

Included Accessories Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15)

Warranty: As per Brand policy

Industrial uses
