HTC Instruments

HTC Instruments DM 85T Digital Multimeter- Trms

SKU: D85THTC
Rs. 1,225.00 MRP Rs. 1,700.00 Save Rs. 475.00 (28% off) Inclusive of GST-18%
In Stock (79 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • Autorange
  • True Rms
  • Continuity Alarm
  • Diode Test
  • Hfe Test

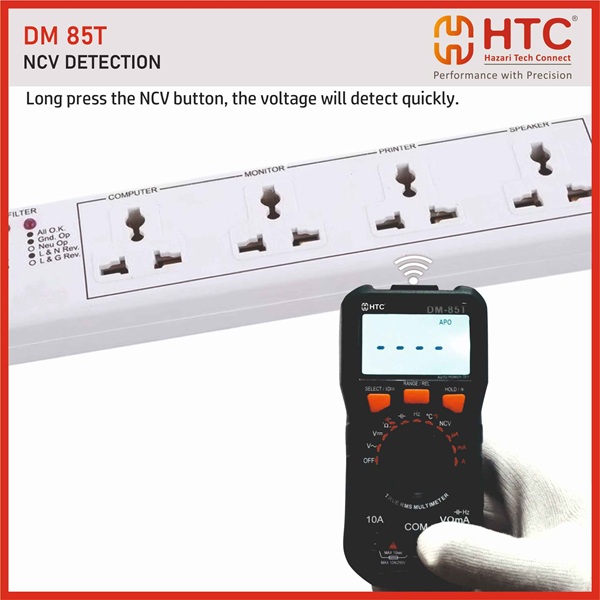

  • NCV Feature
  • Display Count: 6000



Product information

Everything you need to know

Technical Specifications

- Display, LCD Count: 6000
- DC Voltage: 600mV/6V/60V/600V/600V
- AC Voltage: 6V/60V/600V
- DC Current: 600uA/ 6000uA/ 60mA/ 600mA/6A/ 10A
- AC Current: 600uA/ 6000uA/ 60mA/ 600mA/6A/ 10A
- Capacitance: 60nF- 60mF
- Frequency: 1MHz
- Temperature: - 40- 1000 Degree Celcuis
- Resistance: 600ohms/6Kohms/60kohms/600kohms/6Mohms/60Mohms

Warranty
1 year

What's in the Box

Accessories   Test leads, User Manual, TP04 Thermocouple & Battery.

Application

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings.
