HTC Instruments

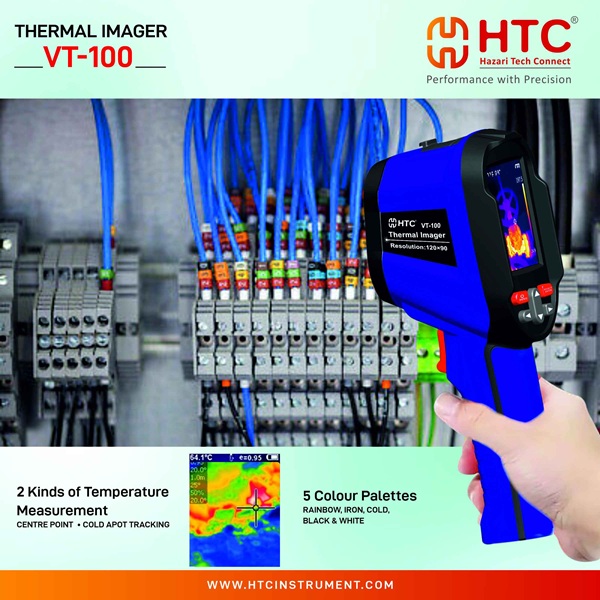

HTC Instruments VT-100 Thermal Imaging Camera

SKU: HTC-O13
Rs. 25,750.00 MRP Rs. 33,005.00 Save Rs. 7,255.00 (22% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • 2.8″ Colour LCD Display
  • Generates thermal distribution images in real time
  • Adjustable emissivity and reflected background compensation improves measurement accuracy on semi-reflective surface.
  • Hot and cold spot temperature markers that guide the user to the hottest and coldest regions in the infrared heat map image.
  • Visuals and heat map image alignment.
  • Select colour palette.
  • Image capture / video recording and save.
  • Switch between infrared & Thermal image and visible image.

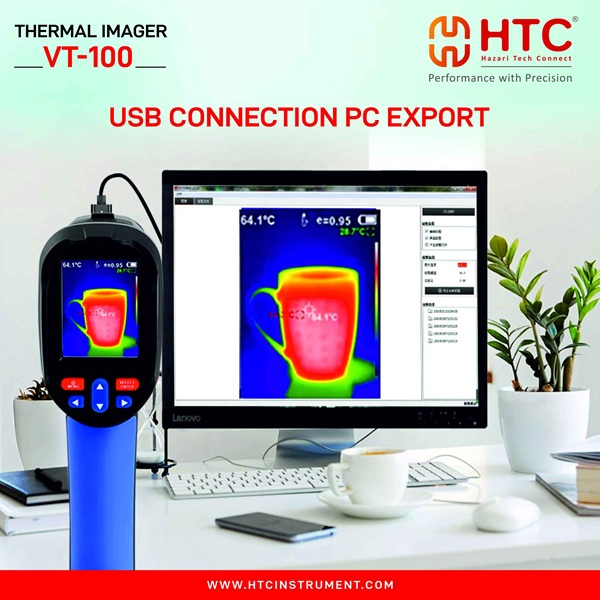

  • Image capture save and analysis on PC offline.
  • Menu can change to English, Italian, German, Russian, Japanese, Chinese
  • Integrates surface temperature measurement and real time thermal image.
  • Radiation coefficient may be adjusted to increase measurement accuracy of objects with half reflection surface.
  • The “Non contact” modern detection technology is safe, reliable and quick.



Product information

Everything you need to know

Technical Specifications

- Display 2.5 inch Color LCD Display
- IR Solution 60x60 (3600 pixels)
- Visible Light Image Resolution 300000 pixels
- Field Of View 20 x 20º
- Thermal Sensitivity 0.15 ºC / 0.27 ºF
- Temperature Range -20 to 300 ºC / -4 to 572ºF
- Accuracy ±2% or reading ±2 ºC / 3.6 ºF
- Emissivity Adjustable 0.1 To 1.0
- Image Frequency 6 Hz
- Spectral Band 8 - 14 um
- Relative Humidity 10 - 80% RH
- Power Supply 4 AA batteries
- Battery Life 6H
- Size 223 x 88 x 65

Warranty
1 year

What's in the Box

Accessories   Thermal Imager, Micro USB Cable, Adaptor, User manual

Application

Thermal imaging cameras are devices that translate thermal energy (heat) into visible light in order to analyze a particular object or scene.
