HTC Instruments

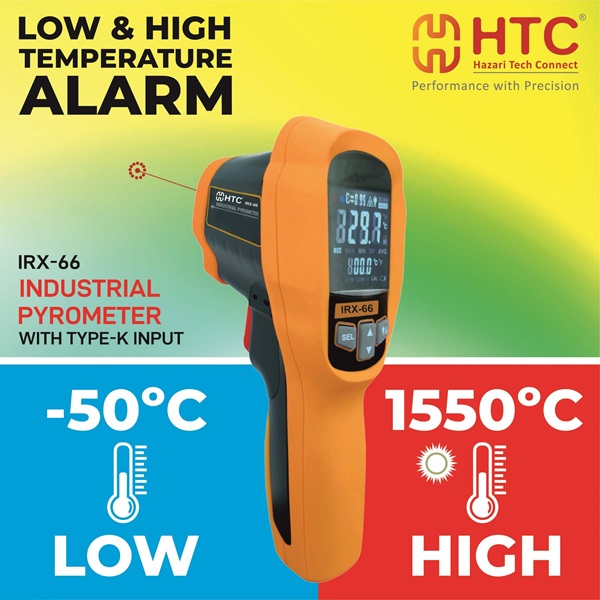

HTC Instruments IRX-66 Dual Contact and Infrared Thermometer

SKU: HTC-O8
Rs. 7,540.00 MRP Rs. 9,665.00 Save Rs. 2,125.00 (22% off) Inclusive of GST-18%
In Stock (3 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • Precise IR and TK temperature measurement
  • Built-in round laser pointer for accurate targeting
  • Fast and easy temperature measurement
  • °C / °F selection
  • Trigger lock
  • Adjustable emissivity: 0.1 to 1.0
  • Max / Min / Diff / Avg record
  • REC data logger function for 12 points
  • LCD display with backlight
  • Adjustable high / low alarm
  • Automatic range selection
  • Automatic data hold function
  • Auto power off



Product information

Everything you need to know

Technical Specifications

- Range: IR: -50°C ~ 1550°C -58°F ~ 2822°F
Contact: -50°C ~ 1370°C, -58°F ~ 2498°F
- IR Temp. Resolution: 0.1°C / °F
- Basic Accuracy: +1.5% of reading
- Emissivity: Adjustable 0.10 ~ 1.0

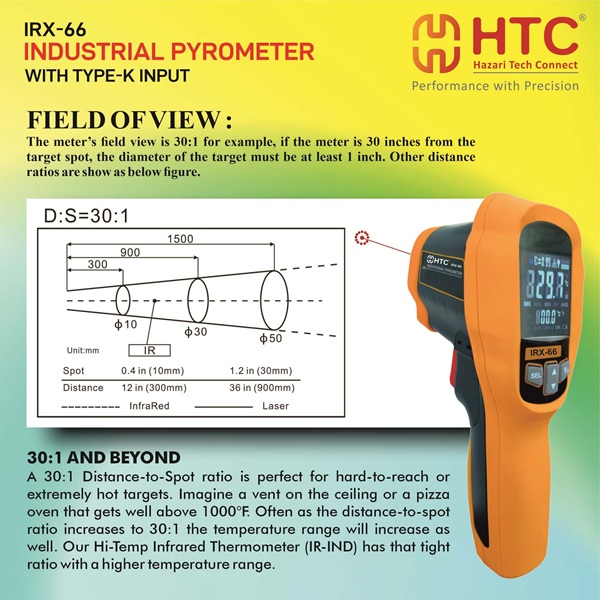

- Optical Resolution: 30:01:00
Emissivity        Adjustable : 0.10~1.0
Response Time           <250ms
Spectral Response    8~14um
Over Range Indication            Lo         Hi
Polarity Display           Auto Display “-” Indicates Negative, While Positive With No Sign
Diode Laser    Output <1mw/630~670nm Level 2(Ii) Laser
Auto Power Off            Automatically After 35 Second
Relative Humidity      Operating : 10 To 95% Rh

Warranty
1 year

Product Description

- Standard Accessories : Carrying case, Manual, Type K Bead Probe, Carry Hook
- Dimension :192(H) x 83(W) x 95(D)mm

What's in the Box

Accessories   Soft Carry Case, Type K Probe, Hook, User Manual & Battery

Application

An infrared thermometer is a thermometer which infers temperature from a portion of the thermal radiation sometimes called blackbody radiation emitted by the object being measured. This permits temperature measurement from a distance without contact with the object to be measured.
