HTC Instruments

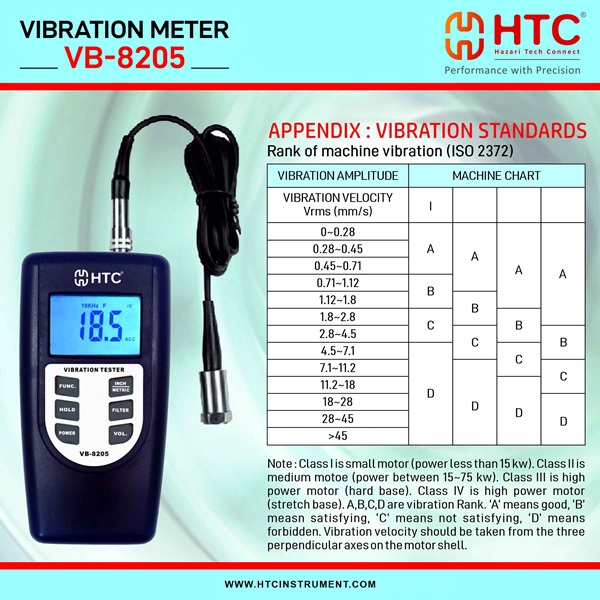

HTC Instruments VB-8205 Vibration Meter

SKU: HTC-J1
Rs. 15,590.00 MRP Rs. 19,990.00 Save Rs. 4,400.00 (23% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

 HTC Brand: VB-8205 Vibration Meter



  • Measures Velocity, Acceleration, Displacement, Rpm, Frequency For Acceleration
  • Lcd Digital Display
  • 4 Digit Display
  • Used For Periodic Measurement, To Detect Out Of Balance, Misalignment And Other Mechanical Faults In Rotating Machines.
  • Easy On Site Vibration Machinery For Quality Control, Commissioning And Predictive Maintenance Purpose
  • Individual High Quality Accelerometer For Accurate And Repeatable Measurement
  • Bearing Condition Monitoring Function
  • Lightweight And Easy To Use.
  • Wide Frequency Range (10hz To 10khz) In Acceleration Mode.
  • Ac Output Socket For Headphone And Recording
  • Pc Interface : Rs232c For Statistics And Printing
  • Optional Headphones For Use As Electronic Stethoscope
  • High Sensitivity Piezoelectric Accelerometer



Product information

Everything you need to know

Technical Specifications

- Acceleration 10Hz-1KHz (Mode1) 0.1 ~ 200 m/s² 0.3 ~ 200ft/s²
10Hz-10KHz (Mode 10) 0.3-200ft/ms² 0.3-1312ft/ms²
- Velocity 10Hz-1KHz 0.01 ~ 40 cm/s 0.000 ~ 16.00 inch/s
True RMS 0.004-16.0inch
- Displacement 10Hz-1KHz 0.001 ~ 4mm 0.04-160 mil
- RPM (revolution) : 60 ~ 99,990r/min
- Frequency : 1 ~ 20 KHz

Warranty
1 year

What's in the Box

Accessories   Magnet Accelerometer, Stinger Probe (Cone), Stinger Probe (Ball), Hard Carrying Case, Manual

Optional  Accessories : USB Cable & Software for RS232C

Application

vibration meters are used in many installations and machines as well as in the development of products, such as tools or components, to measure vibrations and oscillations. Its measurements provide the following parameters: vibration acceleration, vibration velocity and vibration displacement.
