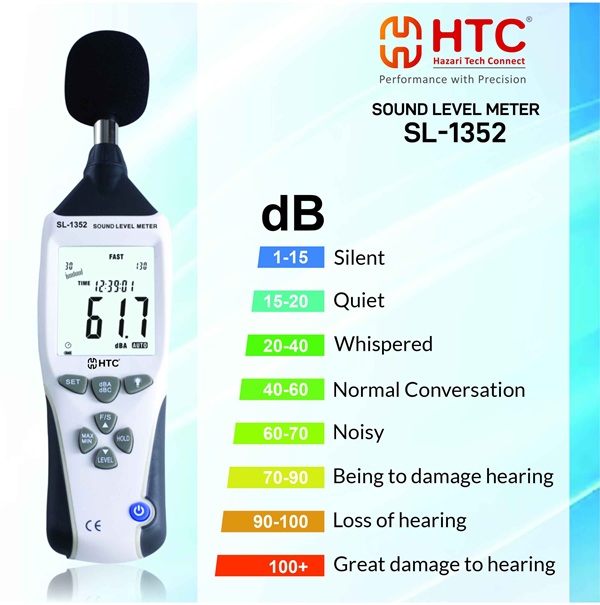

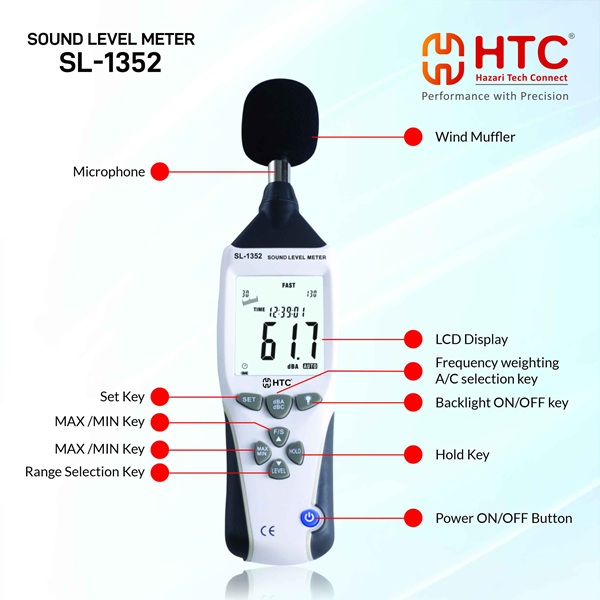

HTC Instruments SL-1352 Sound Level Meter with Data Logging

Name: SL-1352 Sound Level Meter with Data Logging
Brand: HTC Instruments
SKU: HTC-H2
Price: 8930.00 INR
Availability: InStock

SKU: HTC-H2

Rs. 8,930.00 MRP ~~Rs. 11,440.00~~ Save Rs. 2,510.00 (22% off) Inclusive of GST-18%

In Stock (19 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

Measures & manage sounds from variety of sources (measures from 30db ~ 130db)
4 digit lcd with a resolution of 0.1db
Max / min record
Over range / under range display
Time, data transmission display
A & c weighting
Selectable response time : fast / slow
Analog ac/dc outputs for connection to frequency analyzer or x-y shaft recorder.
Pc real time monitoring, recording & memory
Data logging function
Adjustable alarm levels
Auto power off
Meter memory : 262100 reading
Data hold
Usb computer interface
(advance software program for all window)

Product information

Everything you need to know

Technical Specifications

- Basic Function Range
- Accuracy 1.4dB
- Resolution 0.1dB
- Frequency Range 31.5Hz -8kHz
- Dynamic Range 50dB
- Level Range Low: 30dB~80dB Medium:50dB~100dB, High:80dB~130dB Auto: 30dB~130dB
- Time Weighting FAST (125mS),SLOW (1s)
- Microphone ½ inch electric condenser microphone
- Display Update 2 times/sec
- Analog Output AC/DC outputs,AC=1Vrms,DC=10mV/dB

Warranty

1 year

What's in the Box

Accessories Main Unit, Hard Carrying Case, Wind Muffler, Screwdriver, USB Cable, Adaptor, Software, Tripod (Optional), User Manual

Application

A sound level meter is used for acoustic (sound that travels through air) measurements. It is commonly a hand-held instrument with a microphone. The diaphragm of the microphone responds to changes in air pressure caused by sound waves.
