HTC Instruments

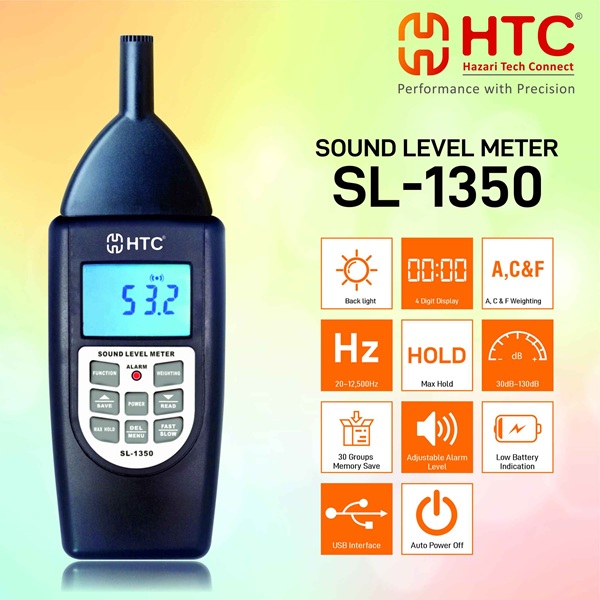

HTC Instruments SL-1350 Sound Level Meter

SKU: HTC-H1
Rs. 3,110.00 MRP Rs. 3,985.00 Save Rs. 875.00 (22% off) Inclusive of GST-18%
In Stock (85 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • Measures & manage sounds from variety of sources (measures from 30db ~ 130db)
  • 4 digit display
  • Parameter measured : sound level, lp, lmax, leq, ln
  • Auto shut down, can be set between 1-9 min
  • With alarm set and alarm output
  • Permits choice of ‘a’ ‘c’ or ‘flat’ weighting and ‘slow’ / ‘fast’ response times.
  • Dc output 0~1.3 v 10mv / db
  • Auto range selection & digital display
  • Communicate with pc computer for statistics, printing and analysing by the optional cable and the software for rs323c interface
  • Memory : 30 groups with measuring condition
  • Alarm value set : 30-130db
  • Alarm output : led and optional relay contact (nc)
  • 94db at 1khz (sinusoidol) in full calibration
  • Meter calibrate by nd9



Product information

Everything you need to know

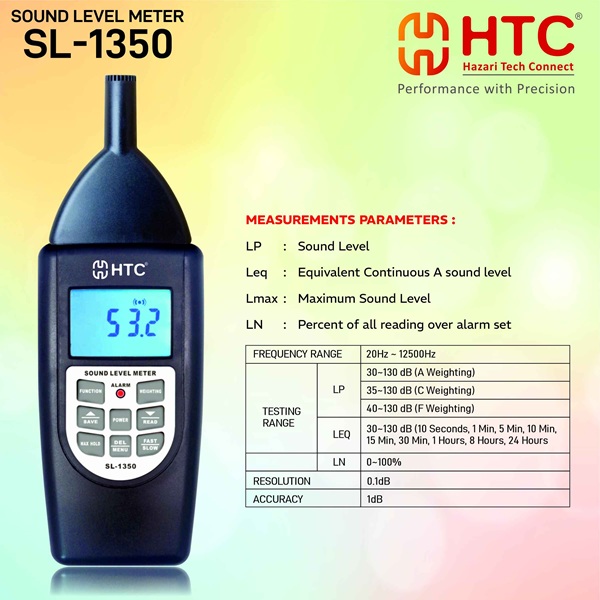

Technical Specifications

- 10mm (0.4”) LCD Display, Backlight
- Auto Manual Shutdown
- Low Battery indicator
- A’, ‘C’ or ‘Flat’ Weighing with Slow / Fast response
- 94db in full Calibration at (1KHz)
- Optional RS-232 Communication: (Advanced Software Program for all Windows)
- Alarm Volume o/p : 30 ~ 130db
- Alarm o/p : LED Optional Relay Output
- LP- 30 ~ 130dB (A), 35 ~ 130dB (C), 35 ~ 130dB (F)
- Leq- 30 ~ 130dB
- 10Sec, 1min, 5 min, 10min, 15min, 30min, 1hr, 8hr, 24hr
- LN 0 ~ 100%
- Resolution - 0.1 DB
- Accuracy- 1 DB

Warranty
1 year

Product Description

N/A

Application

A sound level meter is a measuring instrument used to assess noise or sound levels by measuring sound pressure.
