HTC Instruments

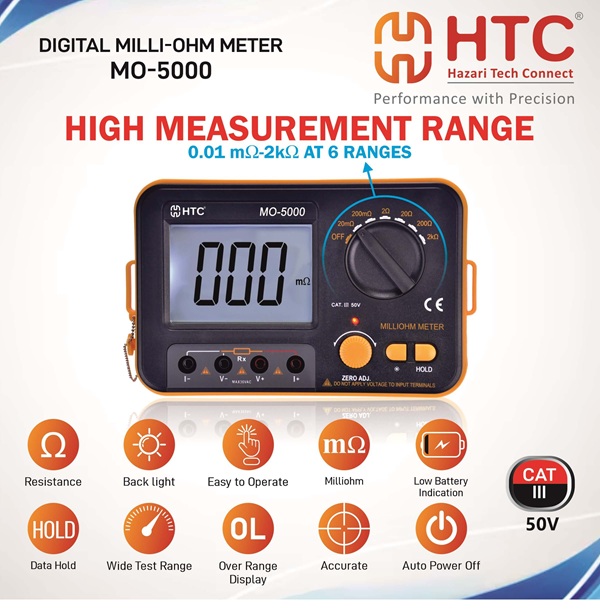

HTC Instruments MO-5000 Digital Milliohm Meter

SKU: HTC-F6
Rs. 9,620.00 MRP Rs. 12,335.00 Save Rs. 2,715.00 (23% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • 3½ Lcd Display, 1,999 Counts
  • Backlight
  • Milliohm & Insulation Tester
  • Earth Tester
  • Short Circuit Buzzer Alarm
  • High Pressure Sound & Light Alarm
  • 4 Wire Testing, Capable Of Testing Extreme Low Impedance
  • Accurate Measurement Of Conductor Electric Heading
  • Elements And Solder Point
  • High Measurement Range Of 0.01 MΩ-2kΩ At 6 Ranges
  • Easy To Operate
  • Wide Test Range
  • Data Hold
  • Full Function Protection
  • Strong Anti-Magnetic & Anti Jamming Function



Product information

Everything you need to know

Technical Specifications

- Range: 20mΩ, ±(1.5%rdg±3), Resolution: 0.01mΩ, Measuring Current Approx. 1000mA
- Range: 200mΩ, ±(0.5%rdg±3), Resolution: 0.1mΩ, Measuring Current: Approx. 500mA
- Range: 2Ω, ±(0.5%rdg±3) Resolution: 1mΩ, Measuring Current: Approx. 500mA
- Range: 20Ω, ±(0.5%rdg±3), Resolution:10mΩ, Measuring: Current: Approx. 500mA
- Range 200Ω, ±(0.5%rdg±3), Resolution: 100mΩ Measuring Current Approx. 500mA
- Range 2kΩ ±(0.5%rdg±3), Resolution:1 Ω Measuring Current Approx. 500mA

Warranty
1 year

What's in the Box

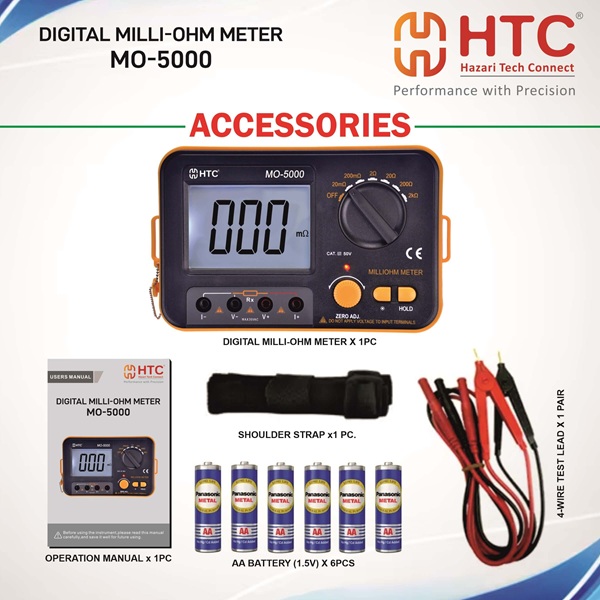

Accessories 4-Wire test lead x 1 Pair Shoulder strap x 1 Pc. User Manual & Battery x 6 Pcs.

Application

Milliohm and micro ohm meters measure electrical resistance.
