HTC Instruments

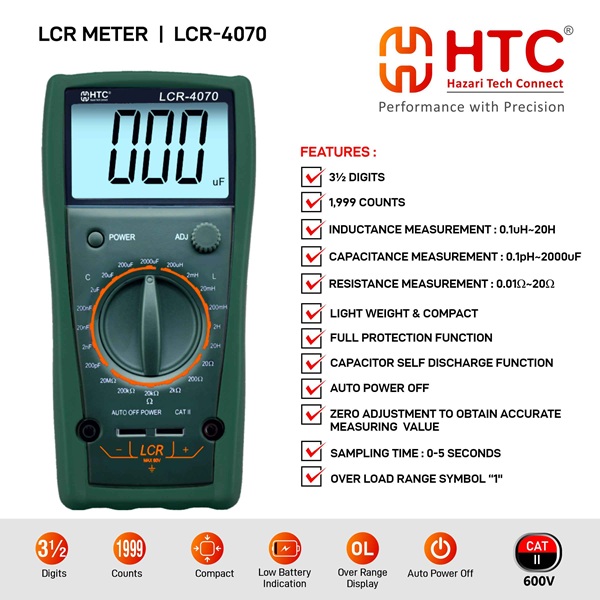

HTC Instruments LCR-4070 LCR Meter- HTC

SKU: HTC-F3
Rs. 2,685.00 MRP Rs. 3,450.00 Save Rs. 765.00 (23% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • 1,999 Counts
  • 3½ Digits
  • Inductance Measurement : 0.1uh~20h
  • Capacitance Measurement : 0.1ph~2000uf
  • Resistance Measurement : 0.01Ω~20Ω
  • Light Weight & Compact
  • Full Protection Function
  • Capacitor Self Discharge Function
  • Auto Power Off
  • Zero Adjustment To Obtain Accurate Measuring Value
  • Sampling Time : 0-5 Seconds
  • Over Load Range Symbol “1



Product information

Everything you need to know

Technical Specifications

- Capacitance 200pF/2nF/20nF/200nF/2μF/ ±(2.5% + 5digit) 0.1pF
20μF/200μF/2000μF
- Inductance 200μH/2mH/20mH/200mH/ ±(2.0% + 5digit) 0.1μH
2H/20H
- Resistance 20Ω/200Ω/2kΩ/20kΩ/ ±(0.8% + 2digit) 0.01 Ω
200kΩ/20MΩ
- Dimension :185(H) x 93(W) x 35(D)mm

Warranty
1 year

Product Description

- Standard Accessories : Soft Carrying Case, Test Leads, Holster, Manual

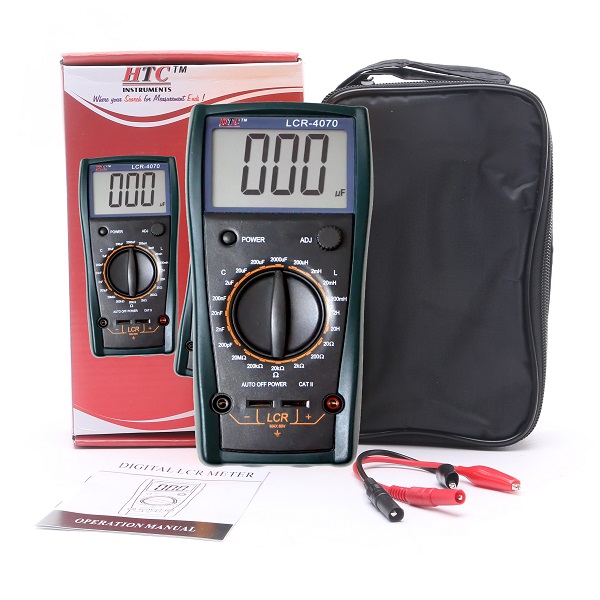

What's in the Box

Accessories Test Lead, User Manual Carry case & Battery

Application

An LCR meter is a type of electronic test equipment used to measure the inductance (L), capacitance (C), and resistance (R) of an electronic component
