HTC Instruments

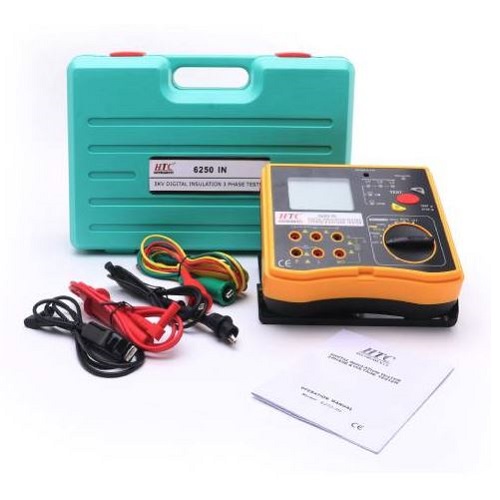

HTC Instruments 6250IN Insulation Resistance Tester

SKU: HTC-D2
Rs. 8,405.00 MRP Rs. 10,775.00 Save Rs. 2,370.00 (22% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • Range: 6250 IN 5kV-200G Digital Insulation Tester
  • 3 ½ Digits LCD Display, 1999 Counts, Backlight
  • Data Hold
  • Auto Ranging
  • 3 in 1 Insulation Resistance, Phase Testing & Voltage Testing



Product information

Everything you need to know

Technical Specifications

- Insulation Resistance: 0.1MW~200GW, ±(3%+5), 10MW
- Testing Voltage: 1000V,2500V,5000V
- AC Voltage: (Test Frequency 50/60Hz), 0~700V, ±(2.0%+5), 1V
- Phase Sequence: (Test Frequency 40~60Hz), 100V~450V
- Dimension :150(H) x 100(W) x 70(D)mm

Warranty
1 year

What's in the Box

Accessories  Manual, Toolbox, Phase sequence test wire set Insulation resistance test wire set AC/DC adaptor & Battery

Application

Insulation resistance testing is used as a quality control measurement. The insulation resistance (IR) test (also commonly known as a Megger) is a spot insulation test which uses an applied DC voltage
