HTC Instruments

HTC Instruments CE-8200 Clamp on Ground Resistance Tester

SKU: HTC-C4
Rs. 20,755.00 MRP Rs. 26,610.00 Save Rs. 5,855.00 (23% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • - HTC Brand: CE-8200 Clamp on Ground Resistance Tester
  • - Model: HTC-C4
  • - 1999 Display
  • - Large 3 ¾ (4000 Counts) LCD Display
  • - Auto power Off
  • - Conductor Size: 32x65
  • - Max/Min, Data Hold
  • - Low battery indication
  • - Overload protection
  • - Double Insulation Protection Level
  • - Spare 5.1 Test Ring, to detect Self Precision



Product information

Everything you need to know

Technical Specifications

Resistance
- 0.010-0.099W, 0.001W. ±(1%+0.01W)
- 0.10-0.99W. 0.01W, ±(1%+0.01W)
- 1.0-49.9W. 0.1W, ±(1.5%+0.1W)
- 50.0-99.5W 0.5W ±(2%+0.5W)
- 100-199W 1W ±(3%+1W)
- 200-395W 5W ±(6%+51W)
- 400-590W 10W ±(10%+10W)
- 600-1000W 20W ±(20%+20W)
- Dimension: 285(H) x 85(W) x 66(D)mm

Warranty
1 year

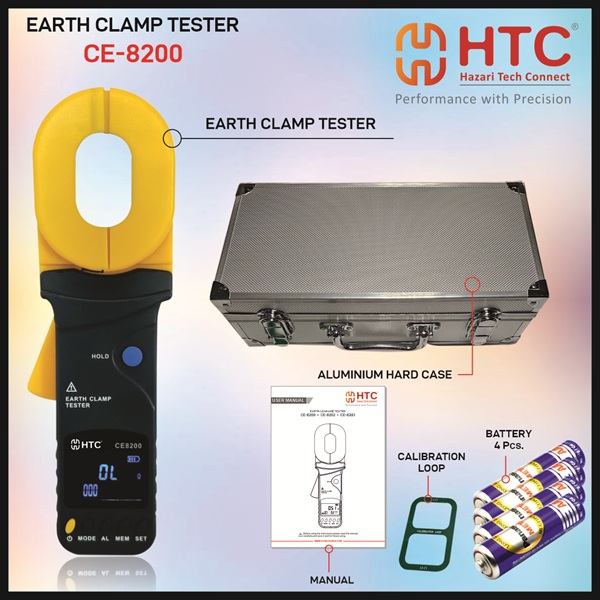

What's in the Box

Accessories   Calibration Loop, Manual, Warranty Card, Battery & Hard Carry Case

Application

Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
