HTC Instruments

HTC Instruments PC-170A 1000A Power Clamp Meter

SKU: HTC-C2
Rs. 7,775.00 MRP Rs. 9,965.00 Save Rs. 2,190.00 (22% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • 9,999 Counts
  • Active Power (750kw), Apparent Power (750kva) Reactive Power 750 (Kvar)
  • Power Factor 0.3~1 (Capacitive Or Inductive)
  • Phase Angle -0º-90º (Capacitive Or Inductive)
  • Active Energy 1~9999kwh
  • True Rms Acv/Aca
  • Large Lcd Display With Backlight
  • Usb Interface, Manual Data Memory And Read (99 Set)
  • Analysis For Single Phase And Balanced 3 Phase Systems
  • Auto Ranging
  • Data Logging / Recall / Max/Min Mode / Data Hold
  • Full Icon Display
  • Analog Bar Graph
  • Jaw Size : 55 Mm (2.16″)



Product information

Everything you need to know

Technical Specifications

- AC Voltage: 15V/100V/300V/750V, ±(1.2%+5)
- AC Current: 40A/100A/400A/1000A, ±(2%+5)
- True Power: 0.60kW-750kW, ±(3%+5)
- Apparent Power: 0.60kVA-750kVA ±(3%+5)
- Reactive Power: 0.60kVAr-750kVAr ±(4%+5)of 15V/1000A else±(4%+5)
- Power Factor: 0.3-1 ±(2%+20)
- Phase Angle: 0° -90° ±1
- Frequency: 20Hz-200Hz ±(0.5%+5)
- Energy: 1-9999kWh ±(3%+2)
- Dimensions : 295(H) x 100(W) x 46(D)mm

Warranty
1 year

Product Description

- Analysis for single phase and balanced 3 phase system
- True RMS Value (Voltage Current)
- Large LCD Display with Backlight
- USB interface
- Min/Max measurement
- True Power/Apparent power/ power factor measurement
- Data Hold/ Auto ranging / Overflow indication/ Auto power Off

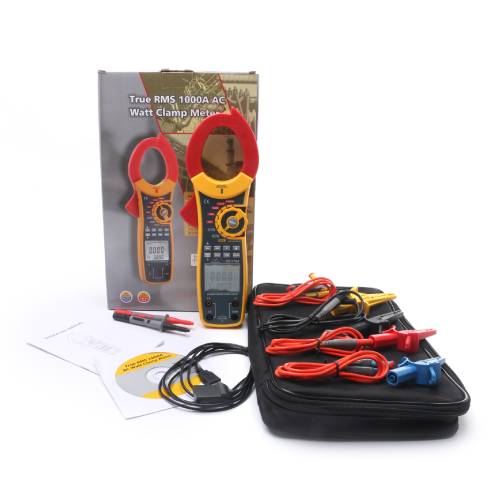

What's in the Box

Accessories  Manual, Red Test Lead x 3, Black Test Lead 1, Red Alligator Clip x 3 Black Alligator Clip x 1, USB interface Cable x 1, Software CD x 1, Tool Box, Carrying Case & 9V Battery x 1.

Application

Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
