HTC Instruments

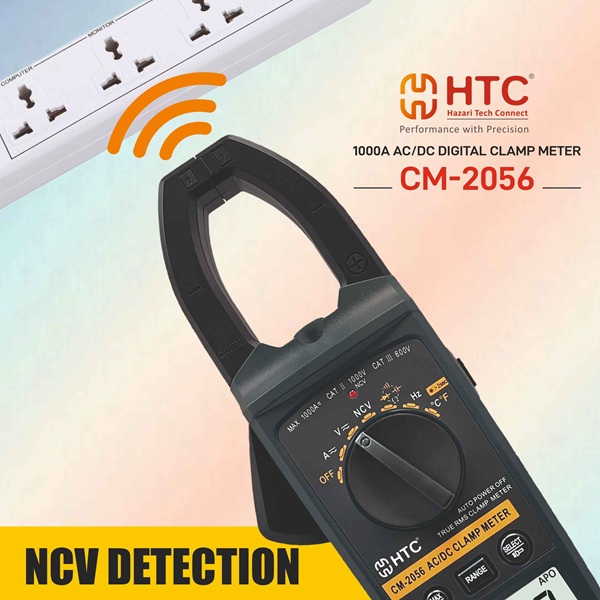

HTC Instruments CM 2056 1000A AC/DC Clamp Meter

SKU: HTC-B10
Rs. 3,320.00 MRP Rs. 4,260.00 Save Rs. 940.00 (23% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

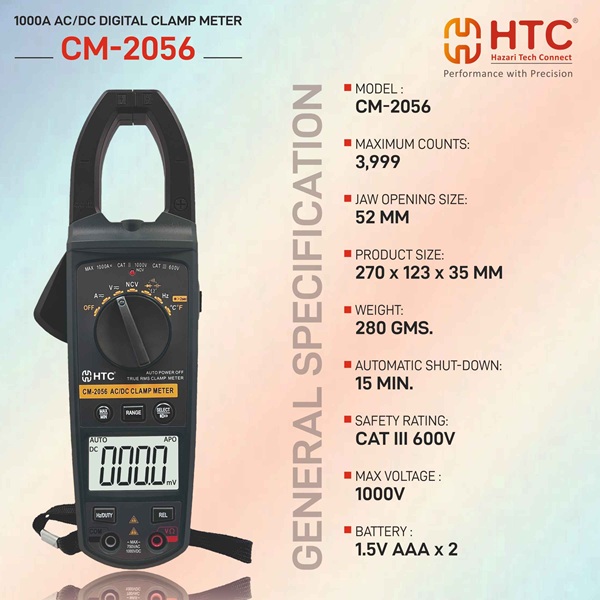

  • HTC Brand: CM-2056
  • 1000A AC/DC Clamp Meter with Temp & Frequency
  • Clamp opens 52mm
  • Large LCD Display
  • Full function protection, strong Anti-Interferential Performance.
  • Data Hold
  • Clamp Light and Backlight display



Product information

Everything you need to know

Technical Specifications

- DC Voltage (DCV) 400mV ~ 1000V ±(0.5% + 5digit)
- AC Voltage (ACV): 400mV ~ 750V, ±(1.0%+ 5digit)
- DC Current (DCA): 400A/1000A, ±(2.0% + 5digit)
- AC Current (ACA): 400A/1000A, ±(2.0% + 5digit)
- Resistance (Ω): 400Ω ~ 40MΩ, ±(0.8% + 3digit)
- Capacitance(F): 40nF~100uF,±(3.5% + 5digit)
- Frequency (Hz): 10Hz~10MHz, ±(0.5% + 5digit)
- Temperature(°C): -40~1000 °C, ±(1.0% + 5digit)
- Dimension: 270(H) x 123(W) x 50(D)mm

Warranty
1 year

Product Description

- Model: HTC-B10
- Standard Accessories : Test Leads, battery, Manual

What's in the Box

Accessories Test leads, Manual, TP04 Thermocouple, Carrying Bag & Battery

Application

Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
