HTC Instruments

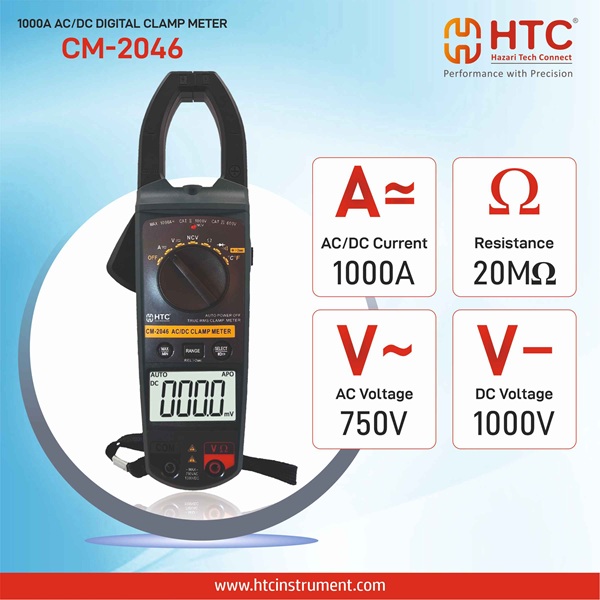

HTC Instruments CM-2046 AC/DC Clamp Meter

SKU: HTC-B9
Rs. 2,925.00 MRP Rs. 3,750.00 Save Rs. 825.00 (22% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

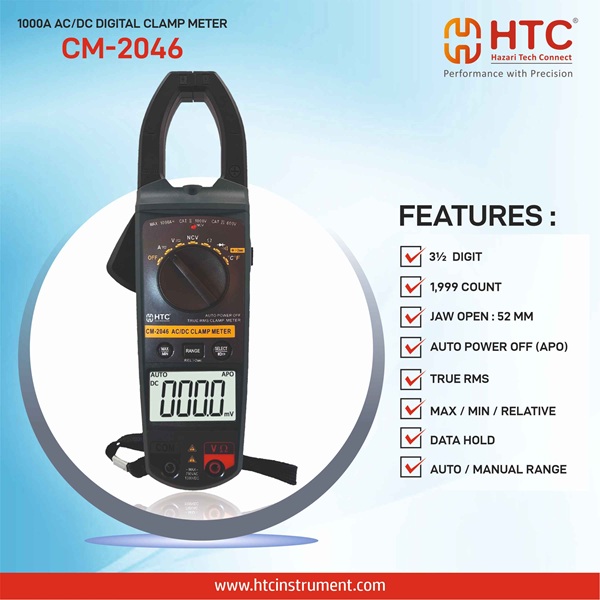

  • - HTC Brand: CM-2046 1000A AC/DC Clamp Meter
  • - Clamp opens 52mm
  • - Large LCD Display
  • - Full function protection, strong Anti-Interferential Performance.
  • - Data Hold
  • - Clamp Light and Backlight display
  • - Model: HTC-B9



Product information

Everything you need to know

Technical Specifications

- DC Voltage (DCV) 200mV ~ 1000V ±(0.5% + 5digit)
- AC Voltage (ACV) 200mV ~ 750V ±(1.0%+ 5digit)
- DC Current (DCA) 200A/1000A ±(2.0% + 5digit)
- AC Current (ACA) 200A/1000A ±(2.0% + 5digit)
- Resistance (Ω) 200Ω ~ 40MΩ ±(0.8% + 3digit)
- Dimensions : 270(H) x 123(W) x 50(D)mm

Warranty
1 year

What's in the Box

Accessories  Test leads, Manual, TP04 Thermocouple, Carrying Bag & Battery.

Application

Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
