HTC Instruments

HTC Instruments CL-2054 Clamp Meter

SKU: HTC-B7
Rs. 5,050.00 MRP Rs. 6,450.00 Save Rs. 1,400.00 (22% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • HTC Brand: CL-2054 mA Clamp Meter
  • 10uA high Resolution
  • Large 3 3/4 ( 4000 counts ) LCD Display
  • Auto Power OFF
  • Shielded transformer jaw opens to 1.2"
  • Max/Min, Data hold, Low Battery indication
  • Overload Protection



Product information

Everything you need to know

Technical Specifications

- Current AC: 40mA ~ 100A, 10uA ~ 100mA, ±( 1.0% +3d )
- Voltage AC: 400V, 0.1Va, ±( 1.0% +10d )
- Resistance: 40 ~ 400Ω, 0.1Ω, ±( 1.0% +2d )
- Continuity Test: Threshold 40Ω, Continuity Beeper 2.5KHz
Dimension :209(H) x 43(W) x 30(D)mm

Warranty
1 year

Product Description

Standard Accessories : Hard Carrying Case, Test Lead, Manual

What's in the Box

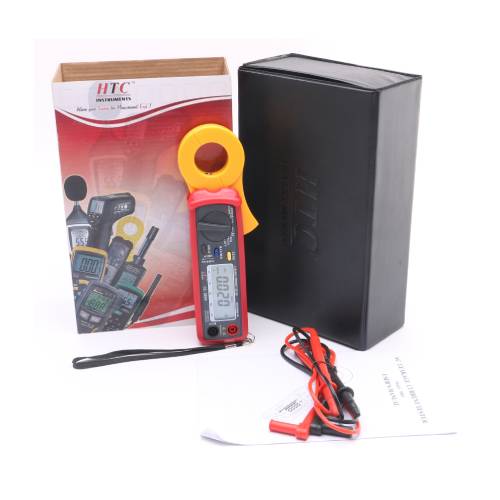

Accessories Test leads, User Manual, Leather Box & Battery.

Application

Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
