HTC Instruments

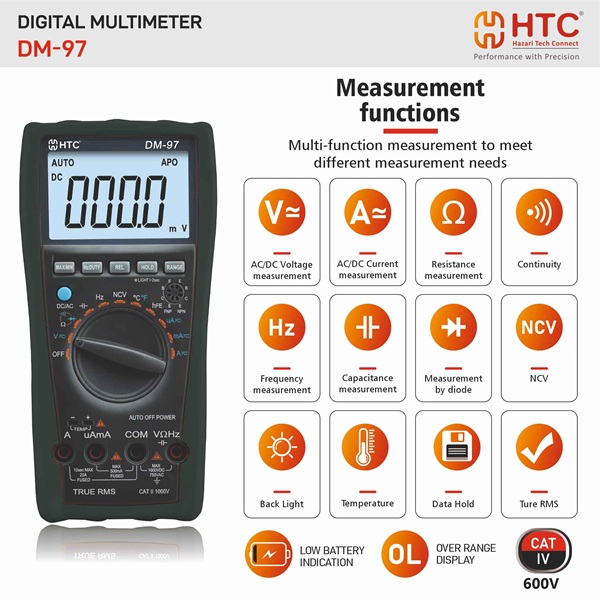

HTC Instruments DM-97 Digital Multimeter with Temp- True Rms

SKU: HTC-A9
Rs. 1,700.00 MRP Rs. 2,280.00 Save Rs. 580.00 (26% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

- HTC Brand: DM-97 Digital Multimeter with Temp.

  • 3¾ Digital Multimeter, 4000 Count Large LCD Display with Auto/Manual Range
  • Model: HTC-A9
  • True Rms
  • Included: Test Leads, Holster, Manual, TP 01 Temperature Probe Bead type
  • No Power-OFF under natural operation
  • Data Hold, Max. / Min. Value Hold
  • Capacitance, Frequency / Duty Cycle
  • Temperature and Transistor Test



Product information

Everything you need to know

Technical Specifications

- DC Voltage 0.1mV ~ 1000V±(0.5% + 4digit)
- AC Voltage 0.1mV ~ 750V ±(0.8%+ 6digit)
- DC Current 0.1uA ~ 20A ±(1.0% + 5digit)
- AC Current 0.1uA ~ 20A ±(1.5% + 5digit)
- Resistance 0.1W ~ 40MW ±(0.8% + 2digit)
- Capacitance 10pF ~ 200uF ±(3.5% + 8digit)
- Frequency 0.1Hz ~ 30MHz±(0.5% + 4digit)
- Celsius -40oC～1000oC ±(0.8% + 4digit)
- hFE (NPN or PNP) 0 ~ 1000

Warranty
1 year

What's in the Box

Accessories  Test Leads, Sheath, TP01 Thermocouple, Manual

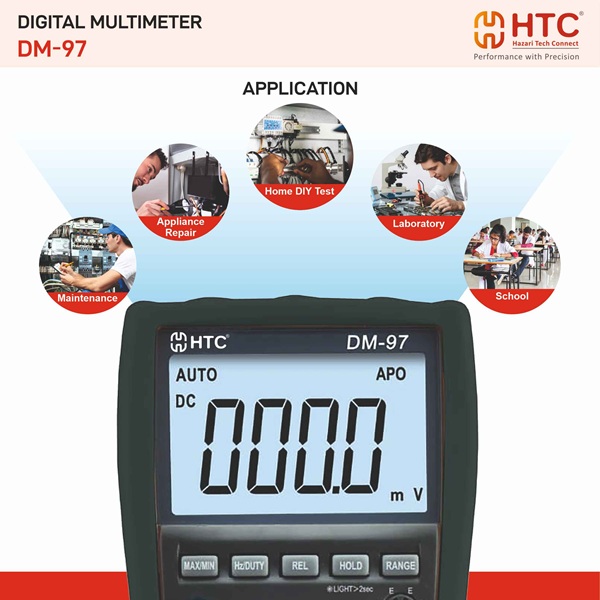

Application

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings.
