Fluke

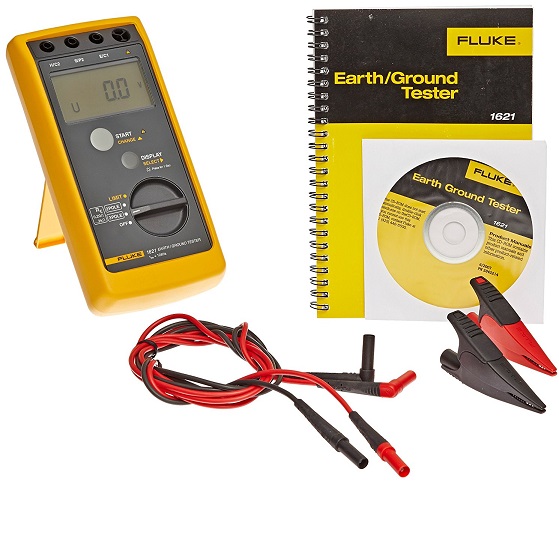

Fluke 1621 Earth Ground Tester

SKU: Fluke46
Rs. 51,345.00 MRP Rs. 71,900.00 Save Rs. 20,555.00 (29% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece
Quantity to add

- 2-pole and 3-pole testing
- Incredibly simple to use
- Automatic electrical noise detection and hazardous voltage warning system

Product information

Everything you need to know

Technical Specifications

- Measuring functions:  3-pole earth ground resistance, 2-pole ac resistance of a conductor
- Measuring rate:  2 measurements/second
- Battery[1] : One 9 volt alkaline (LR61)
- Voltages: Between jacks H/C2 and E/C1: 250 Veff maximum (effective voltage)
- Between jacks S/P2 and E/C1:  250 Veff maximum
- Climatic class: VDE/VDI 3540 RZ (conforming to KWG as per DIN 40040, 4/87)
- Reference:  +23 °C ± 2 °C (+73 °F ± 4 °F)
- Safety  IEC/EN 61010-1, 600 V CAT II, pollution degree 2
- Dimensions  113 mm x 54 mm x 216 mm (4.5 in x 2.1 in x 8.5 in), including holster
- Weight  850 g (1.9 lb), including standard accessories, volume approximately 600 cm3

Email us at Support@toolworld.in for complete technical datasheet

Warranty
As per Flukes warranty policy.

Product Description

The Fluke 1621 is an easy-to-use earth ground tester. For ground resistance testing, the 1621 is the first line of defense in detecting reliable ground connections. The unit features basic ground testing methods including 3-pole Fall-of-Potential as well as 2-pole ground resistance tests.

Application

Its convenient size, rugged holster, and large, clear LCD display make it an ideal field earth ground tester, for most electrical grounding work environments. With a simple user interface and intuitive functionality, the Fluke 1621 is a handy grounding tool for electrical contractors, utility test engineers, and earth ground specialists.
