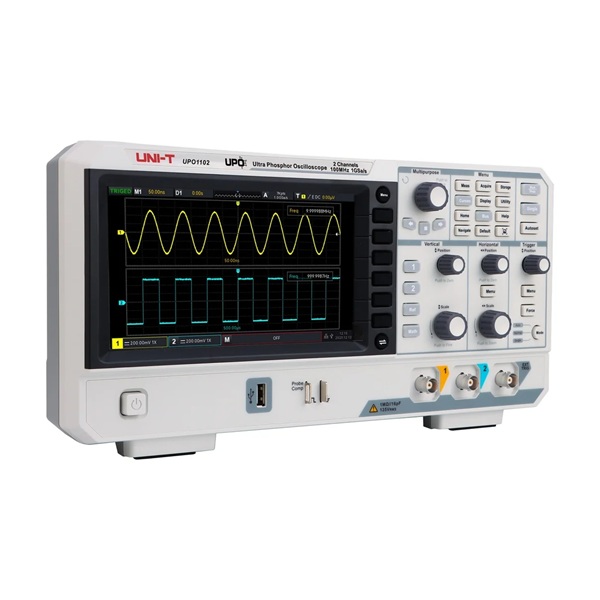

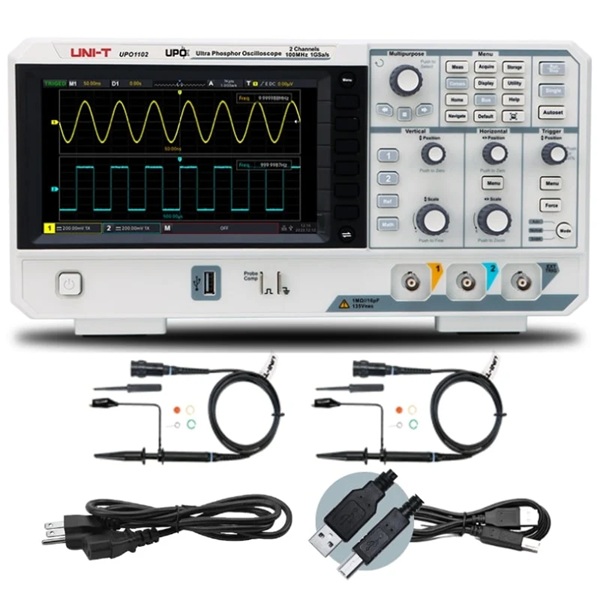

UNI-T UPO1102 100 MHz 2Ch Digital Storage Oscilloscope

The UNI-T UPO1102 is a 100 MHz, two-channel digital storage oscilloscope with 1 GSa/s real-time sample rate, 56 Mpts memory depth, and a 100,000 wfms/s waveform capture rate. Ultra Phosphor 2.0 display technology drives 256-level intensity grading on a 7-inch WVGA TFT LCD, making it straightforward to distinguish frequent signal behavior from rare anomalies at a glance.

Two channels, 56 Mpts of memory, an independent DVM module, an enhanced 1 Mpts FFT, and three serial bus protocols decoded as standard — features that typically appear at the mid-tier. The UPO1102 keeps them on a two-channel value-tier bench, which makes it the per-station scope for teaching labs running multiple benches and the second scope for engineers who need capability without the price premium.

• 100 MHz bandwidth, 2 channels — 1 GSa/s real-time sample rate (1 GSa/s on a single channel; 500 MSa/s with both channels active), ≤ 3.5 ns calculated rise time.
• 56 Mpts memory depth — capture full switching cycles and long protocol sequences without trading sample rate for record length.
• 100,000 wfms/s waveform capture rate — Ultra Phosphor 2.0 with 256-level intensity grading. Fast enough to surface intermittent events that slower scopes miss in normal scan modes.
• 1 Mpts enhanced FFT — frequency-domain analysis with frequency setting, demodulation mode, waterfall display, and marker measurement.
• Independent DVM module — dedicated AC/DC True RMS digital voltmeter, operating in parallel with scope acquisition.
• 6-digit hardware frequency counter — hardware-accelerated counter alongside the scope channels.
• 3 serial bus decoders standard — RS-232/UART, I²C, and SPI trigger and decode included; full-memory hardware decoding turns multi-second decode times into milliseconds.
• 36 automated measurements — time, voltage, frequency, and statistical measurements with cursor-area scoping.
• Multiple trigger types — edge, pulse width, video, slope, runt, over-amplitude, delay, timeout, duration, setup/hold, Nth edge, and pattern triggers.
• Web remote control — browser-based access from any PC or mobile device on the LAN; no driver software, no host application.
• SCPI + LAN automation — Standard Command for Programmable Instruments over LAN for scripted test sequences.
