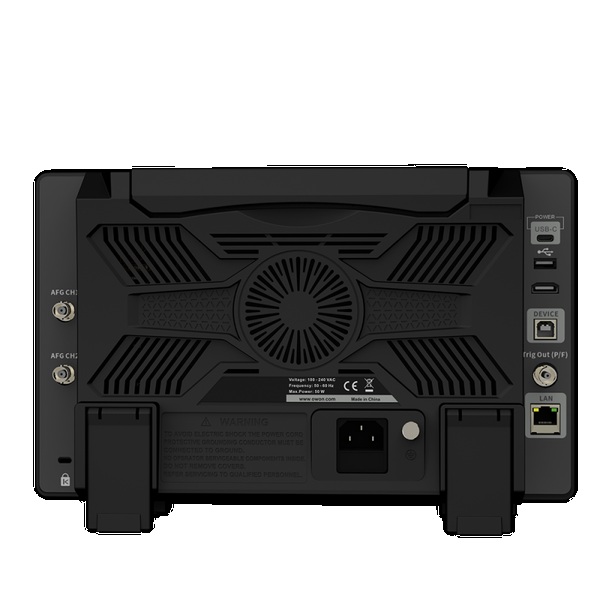

OWON ADS3354A 350MHz (4CH) 12-bit Digital Oscilloscope

SKU: ADS34A
Rs. 139,900.00 MRP Rs. 150,000.00 Save Rs. 10,100.00 (7% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.

The OWON ADS3354A Digital Storage Oscilloscope is a powerful and versatile test instrument designed to meet the needs of engineers, researchers, and educators. With 500 MHz bandwidth, a 1 GSa/s real-time sampling rate, and high-resolution 12-bit ADC technology, it delivers precise waveform capture and signal fidelity for advanced testing requirements. Its 125 Mpts deep memory ensures long signal recording without loss of detail, while the large HD display with touch control provides a clear and intuitive user experience.

Equipped with advanced math functions, protocol decoding, FFT analysis, and optional AFG (Arbitrary Function Generator), the ADS3504A offers a complete solution for debugging, signal analysis, and system verification. Robust connectivity options including USB, LAN, and HDMI allow seamless integration into modern lab and teaching environments.

Features:

  • Bandwidth: 350 MHz (−3 dB)
  • Channels: 4 + EXT
  • Sample Rate: Up to 2.5 GSa/s (single channel), 1.25 GSa/s (dual channel)
  • Waveform Refresh Rate:Vertical Resolution
  • Waveform Refresh Rate: Up to 500,000 wfms/s

Accessories Included

  • 2× Passive Oscilloscope Probes
  • 1× Power Cord (region-specific)
  • 1× USB Cable (for PC connectivity)
  • 1× Quick Start Guide / User Manual
  • 1× Calibration Certificate



Product information

Everything you need to know

Technical Specifications

Bandwidth: 350 MHz (−3 dB)

Channels: 4 + EXT

Sample Rate: Up to 2.5 GSa/s (single channel), 1.25 GSa/s (dual channel)

Vertical Resolution: 12-bit high-precision ADC

Record Length: 100 Mpts deep memory

Waveform Refresh Rate: Up to 500,000 wfms/s

Vertical Scale: 500 µV/div to 10 V/div

DC Gain Accuracy: 3% (≤1 mV), 2% (≥2 mV), 1.5% (≥5 mV)

Input Impedance: 1 MΩ || 15 pF, or 50 Ω (selectable)

Trigger Types  Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I²C, SPI, CAN, LIN

Bus Decoding RS232 / UART, I²C, SPI, CAN, LIN

Auto Measurements Period, Frequency, +Width, −Width, Rise/Fall Time, Scr Duty, +Duty/−Duty, Vavg, Vpp, VRMS, Overshoot, Vmax/Vmin, Vtop/Vbase, CycRms, Vamp, Preshoot, Std Dev, +PulseCnt, −PulseCnt, RiseCnt, FallCnt, Area, CycArea, Delay/Phase (inter-channel), FRR/FRF/FFR/FFF/LRR/LRF/LFR/LFF

Waveform Math           +, −, ×, ÷, &&, ||, ^, !, Integration, Differentiation, Sqrt, Function ops (Lg/Ln/Exp/Abs/Sine/Cosine/Tan), FFT/FFT rms, User-Defined, Digital Filter (low/high/band-pass, band-reject)

Frequency Counter    6-digit counter; max frequency = model analog bandwidth

Voltmeter        DC, AC+DC rms, AC rms; 4-digit resolution (ACV/DCV)

Timebase Accuracy  ±1 ppm (typ.)

Warranty
As per Brand policy

Application

Ideal choice for engineers, educators, and electronics professionals who demand accuracy, flexibility, and ease of use.
