HTC Instruments

HTC Instruments VT-108 Thermal Imager PrimeX Series

SKU: VT0108
Rs. 32,950.00 MRP Rs. 34,000.00 Save Rs. 1,050.00 (4% off) Inclusive of GST-18%
In Stock (4 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

THERMAL IMAGER, Range 256*192, Infrared & Thermal image & visible image can be switched. Win XP, Win7, Win8, Win10, Apple Systems compatible. Image registration helps users to understand infrared image captured. High / Low temperature can be set.

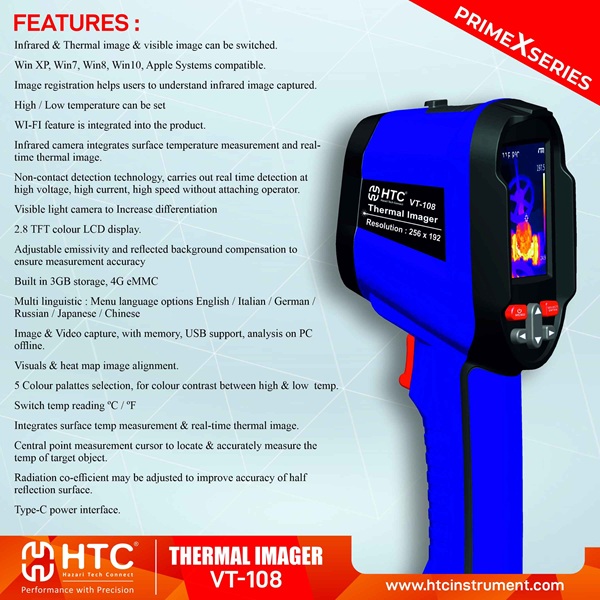

Features

  • Infrared Image Resolution     256 * 192
  • Infrared & Thermal image & visible image can be switched.
  • Win XP, Win7, Win8, Win10, Apple Systems compatible.
  • Image registration helps users to understand infrared image captured.
  • High / Low temperature can be set
  • WI-FI feature is integrated into the product.
  • Infrared camera integrates surface temperature measurement and real-time thermal image.
  • Non-contact detection technology, carries out real time detection at high voltage, high current, high speed without attaching operator.
  • Visible light camera to Increase differentiation 2.8 TFT colour LCD display.
  • Adjustable emissivity and reflected background compensation to ensure measurement accuracy
  • Built in 3GB storage, 4G Emmc
  • Multi linguistic: Menu language options English / Italian / German / Russian / Japanese / Chinese
  • Image & Video capture, with memory, USB support, analysis on PC offline.
  • Visuals & heat map image alignment.
  • 5 Colour palattes selection, for colour contrast between high & low temp.
  • Switch temp reading ºC / ºF
  • Integrates surface temp measurement & real-time thermal image.
  • Central point measurement cursor to locate & accurately measure the temp of target object.
  • Radiation co-efficient may be adjusted to improve accuracy of half reflection surface.
  • Type-C power interface.



Product information

Everything you need to know

Technical Specifications

Infrared Image Resolution     256 * 192

Field Angle      56° x 42°

Image PC Offline Analysis     Available

Infrared Detector Type            Vanadium oxide is uncooled in the infrared focal plane

Wi-Fi Data Transmission        Available

Image Capture Frequency    25Hz

Pixel Size         12um

NETD   <50mK@25°C@F/1.1

Shortest Focus Length           3.2 mm

IFOV    3.75mrad

Wavelength Coverage             8-14um

Focus Mode    Fixed

Temperature Measurement Range  -20°C to 550°C (-4°F to 1022°F)

Temperature Measurement Accuracy          ±2%, ±2°C (3.6°F) or of reading

Resolution       0.1°C

Temperature Measurement Mode    Center Point / Cold Hot Spot Tracking

Colour Palette             Rainbow, Iron Oxide Red, Cold Colour, Black & White

White & Black

Emissivity        Adjustable from 0.01 to 1.00

Visible Light Image Resolution          300000 Pixel

Thermal Sensitivity    0.15°C/0.9°F

Display Screen            2.8″ TFT Colour Display

Image Display Mode Infrared / Visible / Dual light fusion

Lighting Supplement LED Lighting Supplement

Storage Capacity        Built in 4G eMMC (about 3G storage available for user)

File / Video Formats  JPG/MP4

Image / Video Export Mode   USB Connection PC Export

Menu Language          English / Italian / German / Russian / Japanese / Chinese

Power Interface           Type-C

Automatic Power Off Selectable : 5 min. / 20 min., not power off Automatically

Warranty
1 year

What's in the Box

Accessories   Thermal Imager, Type-C USB Cable, adaptor & User’s Manual

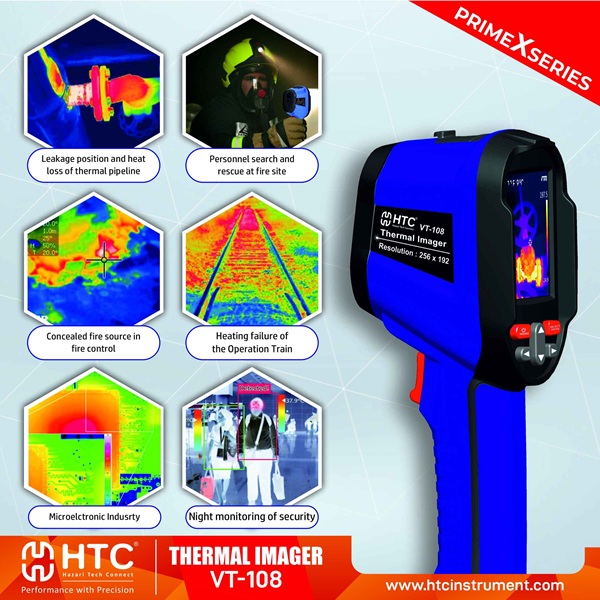

Application

Electrical Industry, Refrigeration, Food Industry
