HTC Instruments

HTC Instruments TM-702 Contact/Non Contact Tachometer

SKU: TM0702
Rs. 2,120.00 MRP Rs. 2,900.00 Save Rs. 780.00 (27% off) Inclusive of GST-18%
In Stock (3 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

Contact / Non-Contact Tachometer, Wide Measurement Range Non Contact 10-99999 RPM, Contact 1.0-19999 RPM, High Resolution, Accurate Speed Measurement, High And Low Threshold Alarms, Easy And Comfortable To Use

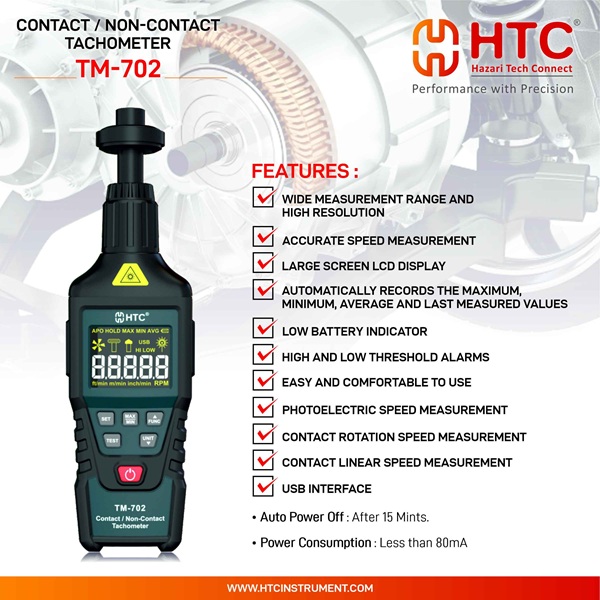

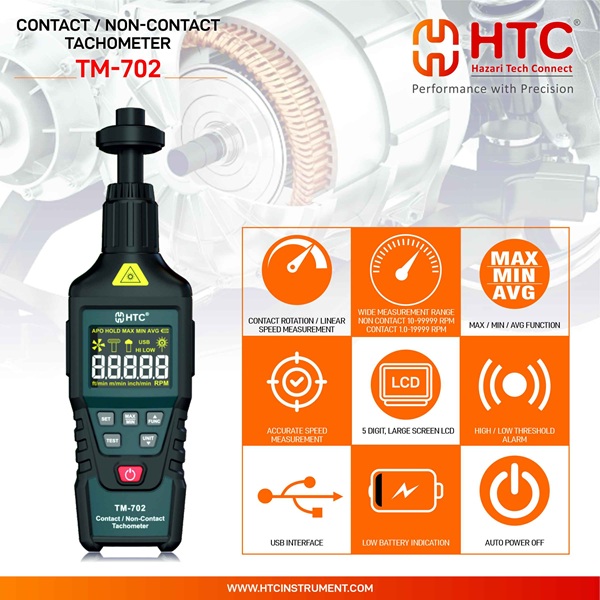

Features

  • Wide Measurement Range And High Resolution
  • Accurate Speed Measurement
  • Large Screen Lcd Display
  • Automatically Records The Maximum, Minimum, Average And Last Measured Values
  • Low Battery Indicator
  • High And Low Threshold Alarms
  • Easy And Comfortable To Use
  • Photoelectric Speed Measurement
  • Contact Rotation Speed Measurement
  • Contact Linear Speed Measurement
  • Usb Interface



Product information

Everything you need to know

Technical Specifications

MEASURING RANGES            RESOLUTION                     ACCURACY

NON-CONTACT                0.1RPM(10~9999.9 RPM)             ±(0.05% +1)

10~99999 RPM            1 RPM (above 10000 RPM)

CONTACT                       0.1RPM(1~999.9 RPM)

1.0~19999 RPM           1 RPM (above 10000 RPM)

DISPLAY                     5 DIGIT 40 MM LCD

EFFECTIVE DISTANCE            50MM ~500MM

RANGE SELECTION                AUTOMATIC

Warranty
1 year

What's in the Box

Manual

Application

Electrical & Motor Industries, Textile & Printing Industries, Process Industries, R&D Labs
