HTC Instruments LX-108L Digital LED Lux Meter

SKU: LX108L

Rs. 2,350.00 MRP ~~Rs. 3,000.00~~ Save Rs. 650.00 (22% off) Inclusive of GST-18%

In Stock (5 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

LX-108, Digital Led Lux Meter, 180 Degree Rotable Probe, Led Type : Red / Blue / Green / Yellow / Purple, Lcd Display With Bar-Graph, Max / Min / Avg Data Hold

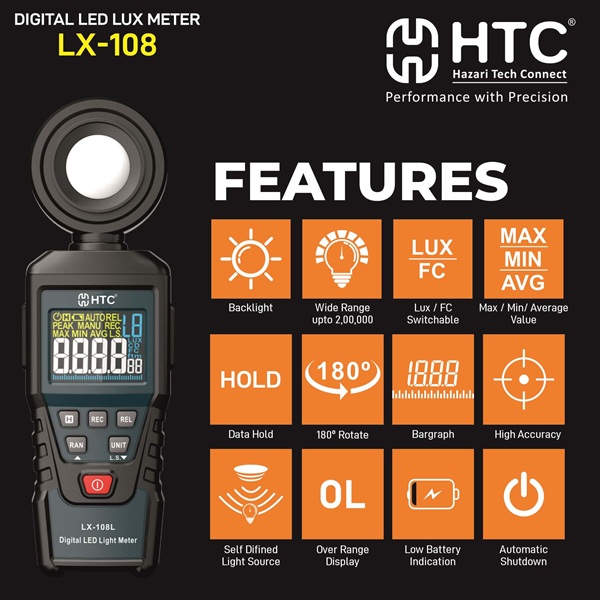

Features

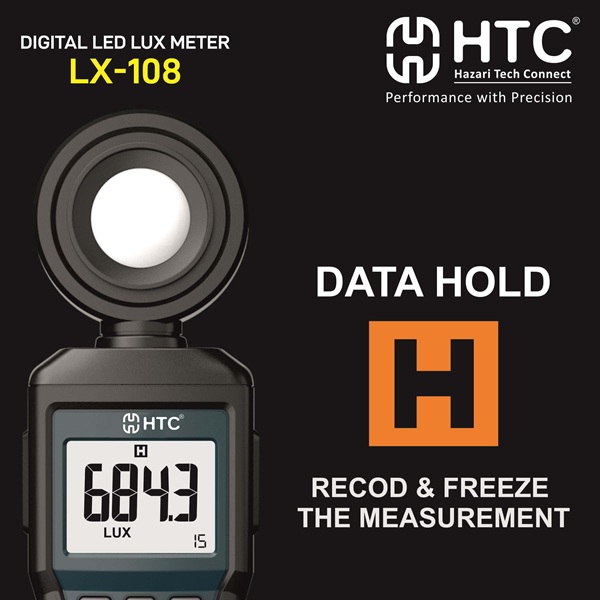

Data hold with auto and manual range selection
Max / Min / Avg data recording
Relative value measurement
180° rotatable probe
LED type selection: Red / Blue / Green / Yellow / Purple
Self-defined light source and coefficient
LCD display with bar-graph
Auto power off and low battery indication

Product information

Everything you need to know

Technical Specifications

Range LUX : 1000, 10000, 200000

FC : 100, 1000, 20000

Accuracy ±(3% +5 Lux) (at 2854°K incandescent lamps)

±(6% +5 Lux) Others

Cosine angle deviation characteristics

30° ±2%; 60° ±6%; 80° ±25%

Calibration Calibrated to a standard incandescent lamp at colour temperature 2854°K

Resolution LUX : <1000:0.1LUX; >1000:1LUX

FC : <100:0.1FC; <1000:0.1FC; >1000:1FC

Sensor Silicon photo-diode and spectral response filter

Operating Conditions Temperature : 0~40°C, Humidity : <80%RH

Altitude : <2000m

Storage Condition Temperature : 10~50°C, Humidity : <80%RH

Altitude : <2000m

Sampling Rate Approx. 2 times per second

Special Range 320~730nm

Auto Power Off 10 Minutes

Power 3 x 1.5V AAA (LR03) batteries

Warranty

1 year

What's in the Box

Accessories User Manual & Soft Carry Case

Application

Agriculture & Greenhouses, Research, Labs & Universities, Warehouse & Storage Areas, Architecture & Interior Design
