HTC Instruments

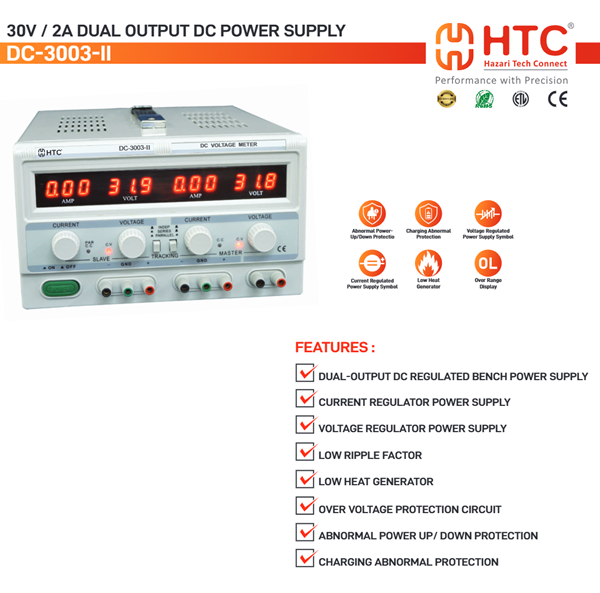

HTC Instruments DC-3003-II 30V / 3A Dual Output DC Power Supply

SKU: DC300II
Rs. 9,300.00 MRP Rs. 10,000.00 Save Rs. 700.00 (7% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

30V / 3A Dual Output Dc Power Supply, O/P Voltage 0~30V, O/P Current 0~3A, Fixed O/P 5V, 2A, Current/ Voltage Regulator Power Supply, Abnormal Power Up/ Down Protection

Features

  • Dual Output Dc Power Supply
  • Current Regulator Power Supply
  • Voltage Regulator Power Supply
  • Low Ripple Factor
  • Low Heat Generator
  • Over Voltage Protection Circuit
  • Abnormal Power Up/ Down Protection
  • Charging Abnormal Protection



Product information

Everything you need to know

Technical Specifications

O/P Voltage       0~30V

O/P Current 0~3A

Fixed Current  5V~2A

Line Regulation           ≤0.01% +3mV

Load Regulation         ≤0.001% +3mV

Ripple And Noise        ≤1mV rms

Protection       Constant Current And Short-Circuit Protection

Indication Accuracy  ≤0.5% +1 Digit

Input Volatage             220VAC ±10%, 50Hz ±2Hz

Warranty
1 year

What's in the Box

 Accessories   Power cord, Test Lead, User Manual

Application

Electronics Manufacturing Industry, Electrical & Electronics Service Centers, Research & Development Laboratories
