HTC Instruments CM-2061PV Clamp Meter

SKU: CM2061

Rs. 8,330.00 MRP ~~Rs. 9,550.00~~ Save Rs. 1,220.00 (13% off) Inclusive of GST-18%

Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

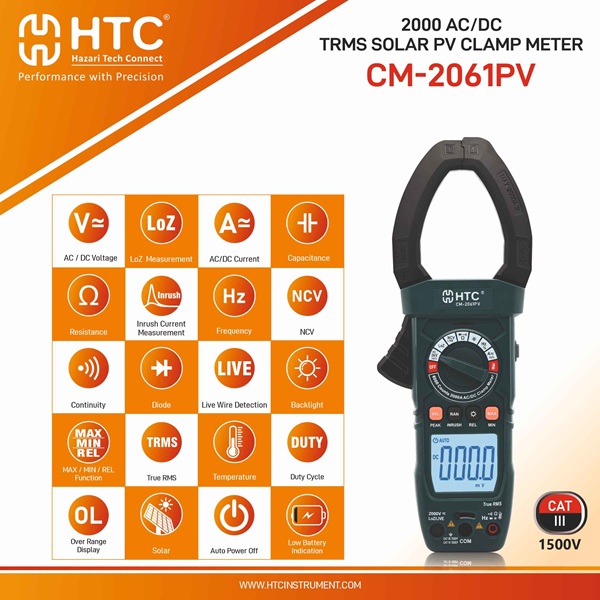

2000 AC/DC TRMS Solar PV Clamp Meter, 5,999 Counts, 67mm Jaw, Peak Voltage Measurement, Large LCD with Big Font Size, NCV, DIODE, Auto Power Off & Auto & Manual Range

Features

5,999 Counts
Jaw Size 67 Mm
Data Hold
Large Lcd With Big Font Size
True Rms
Ncv
Diode
Live Wire Detection
Peak Voltage Measurement
Max / Min / Relative Function
Duty Cycle
Full Over Load Protection
Temperature ºf & ºc
K-Type Thermocouple
Backlight & Flaslight
Both Auto & Manual Range
Loz Measurement
Auto Power Off

Product information

Everything you need to know

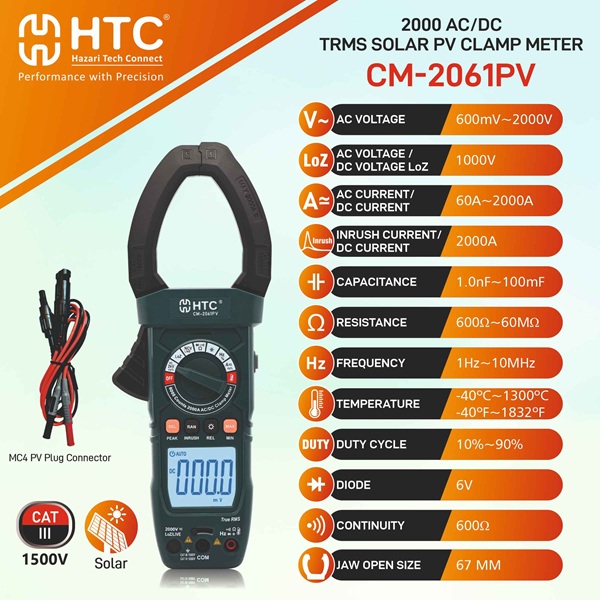

Technical Specifications

AC VOLTAGE / DC VOLTAGE LoZ

RANGE RESOLUTION ACCURACY OVERLOAD PROTECTION

1000V 1V ±(2.0%+5) 1000V DC / AC

INRUSH CURRENT, DC CURRENT (A~Hz%)

RANGE RESOLUTION ACCURACY OVERLOAD PROTECTION

INRUSH CURRENT ACA 2000A 1A ±(10%+10) 2000A

AC CURRENT, DC CURRENT (A~Hz%)

RANGE RESOLUTION DCA ACA OVERLOAD PROTECTION

60A 0.01A 2000A

600A 0.1A ±(2.0%+5) ±(2.0%+5)

2000A 1A –

FREQUENCY / DUTY CYCLE (Hz%)

RANGE RESOLUTION ACCURACY OVERLOAD PROTECTION

1Hz~10MHz 0.001Hz~1kHz ±(1.0%+3) 600V DC/AC

10.0%~99.9% 0.1% ± (2.6%+7)

Warranty

1 year

What's in the Box

Accessories Test leads, User Manual, K-Type Thermocouple, Hard Carrying Bag, Battery, Test Probe, Crocodile Clips & MC4 PV Plug

Application

Residential Use, HVAC, Automotive, Research
