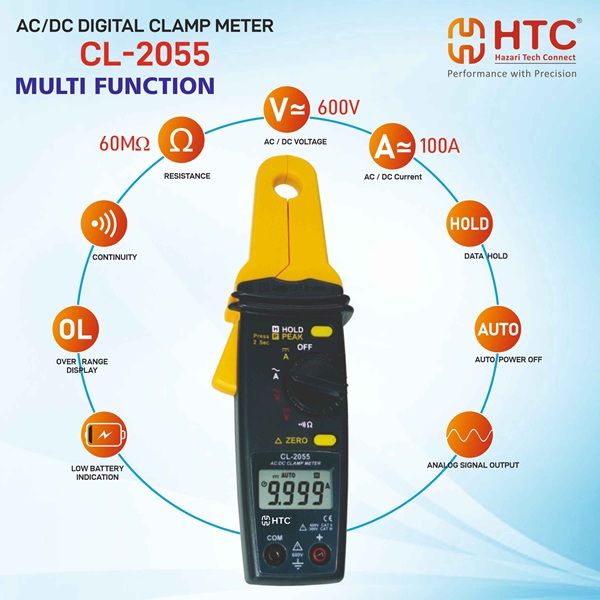

HTC Instruments CL-2055 AC/DC Digital Clamp Meter

SKU: CL2055

Rs. 8,760.00 MRP ~~Rs. 9,500.00~~ Save Rs. 740.00 (8% off) Inclusive of GST-18%

Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

4 Digits, 9999 Counts, 12.5mm Jaw, AC/DC Voltage 600V, AC/DC Current 100A,True RMS, Electromagnetic Compatibility

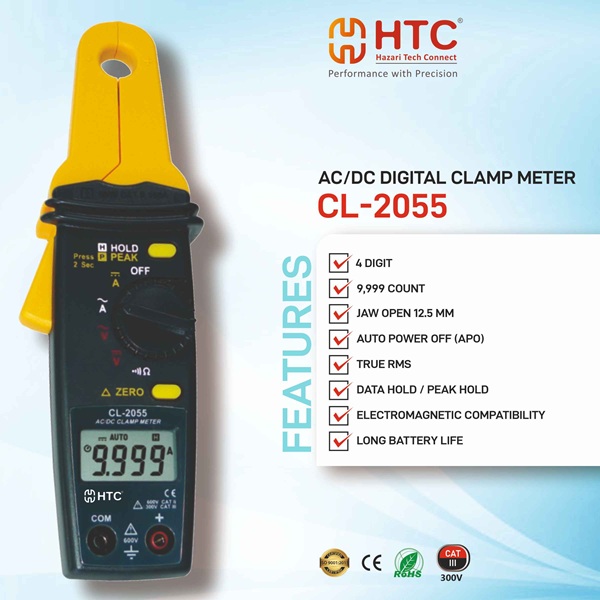

Features

4 Digit
9,999 Count
Jaw Open 12.5 Mm
Auto Power Off (Apo)
True Rms
Data Hold / Peak Hold
Electromagnetic Compatibility
Long Battery Life

Product information

Everything you need to know

Technical Specifications

DC VOLTAGE

RANGE RESOLUTION ACCURACY

600V 0.1V ±1.0% of rdg ±2 digits

AC VOLTAGE

RANGE RESOLUTION ACCURACY

600V 0.1V ±1.5% of rdg ±5 digits

DC CURRENT

RANGE RESOLUTION ACCURACY

10A 1mA ±2.5% of rdg±10 digits

80A 10mA ±4.5% of rdg±10 digits

80~100A 10mA

AC CURRENT

RANGE RESOLUTION ACCURACY

10A 1mA ±2.0% of rdg±10 digits

80A 10mA ±3.5% of rdg±10 digits

80~100A 10mA

Warranty

1 year

What's in the Box

Accessories Test leads, User Manual, Leather Carrying Bag & Battery

Application

Electrical Industry, Industrial Maintenance, Residential Use
