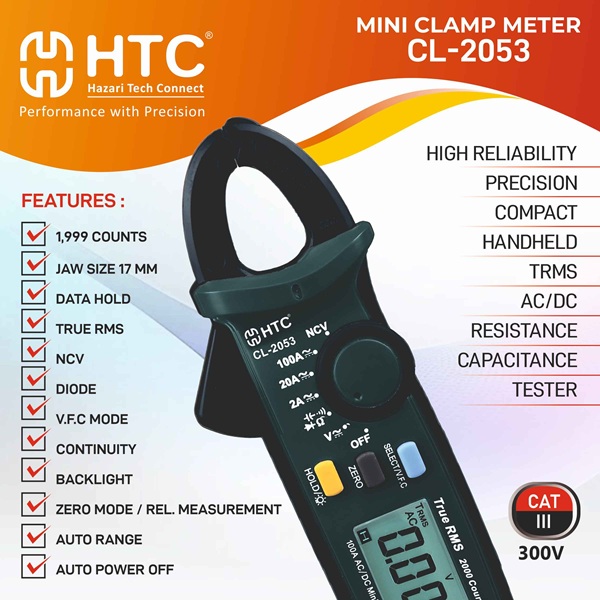

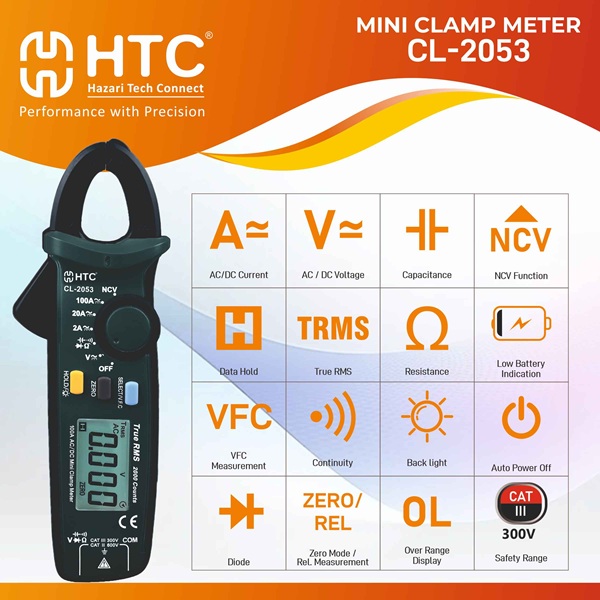

HTC Instruments CL-2053 Mini Clamp Meter

SKU: CL2053

Rs. 5,040.00 MRP ~~Rs. 6,000.00~~ Save Rs. 960.00 (16% off) Inclusive of GST-18%

In Stock (3 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

Mini Clamp Meter, 1999 Counts, Jaw Size 17 mm, Resistance, Capacitance, Data Hold, True RMS, V.F.C Mode, Backlight, Auto Range & Auto Power Off.

Features

1,999 Counts
Jaw Size 17 Mm
Data Hold
True Rms
Ncv
Diode
V.F.C Mode
Continuity
Backlight
Zero Mode / Rel. Measurement
Auto Range
Auto Power Off

Product information

Everything you need to know

Technical Specifications

DC VOLTAGE

RANGE RESOLUTION ACCURACY

200mV 0.1mV ±(0.7%+5)

2V 1mV ±(0.7%+3)

20V 10mV

200V 100mV

600V 1V

AC VOLTAGE

RANGE RESOLUTION ACCURACY

2V 1mV ±(1.0%+3)

20V 10mV

200V 100mV ±(1.0% +3) V.F.C. mode: ±(4.0%+3)

600V 1V ±(1.2% +3)V.F.C. mode: ±(4.0%+3)

RESISTANCE

RANGE RESOLUTION ACCURACY

200Ω 0.1Ω ±(1.0%+2)

2KΩ 1Ω

20KΩ 10Ω

200KΩ 100Ω

2MΩ 1KΩ ±(1.2%+3)

20MΩ 10KΩ

Warranty

1 year

What's in the Box

Accessories Test leads, User Manual, Probe assemblies 1 pair, Carry Case & Battery

Application

HVAC, Automotive, Research
