HTC Instruments

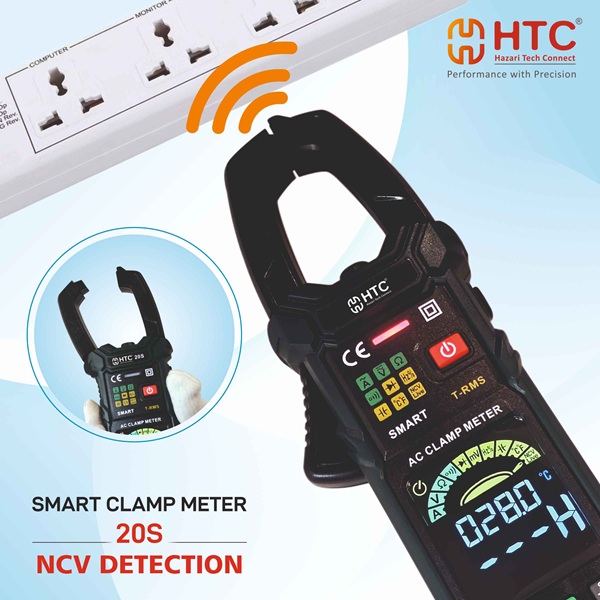

HTC Instruments 20S Smart Clamp Meter

SKU: HTC20S
Rs. 2,350.00 MRP Rs. 3,000.00 Save Rs. 650.00 (22% off) Inclusive of GST-18%
In Stock (5 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

3¾ Digits, 5999 Counts, 36mm Jaw, AC/DC Voltage 600V, AC Current 600A, True RMS, Auto Mode, Duty Cycle

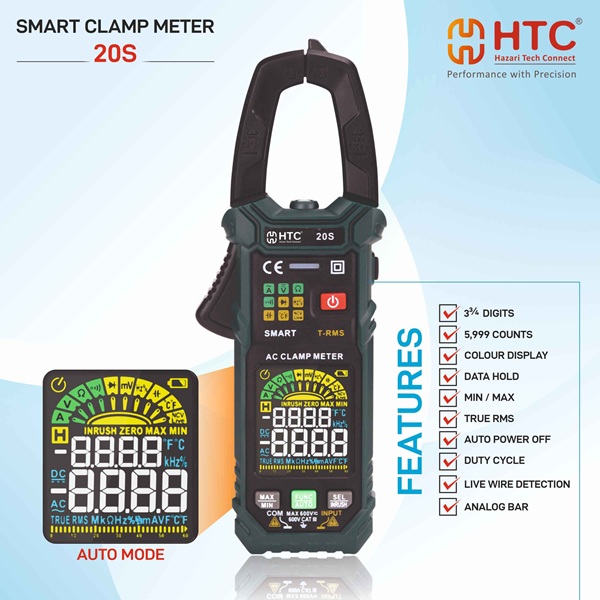

Features

  • 3¾ Digits
  • 5,999 Counts
  • Colour Display
  • Data Hold
  • Min / Max
  • True Rms
  • Auto Power Off
  • Duty Cycle
  • Live Wire Detection
  • Analog Bar



Product information

Everything you need to know

Technical Specifications

RANGE             RESOLUTION           ACCURACY

600mV              0.1 mV                       ±(0.5% rdg+5)

6V                      0.001V

60V                    0.01V

600V                  0.1V



AC VOLTAGE

RANGE             RESOLUTION                ACCURACY

600mV              0.1mV                     ±(0.8% of rdg+5)

6V                      0.001 V

60V                    0.01 V

600V                  0.1 V



RESISTANCE

RANGE             RESOLUTION             ACCURACY

600Ω                            0.1Ω              ±(0.1% rdg+5)

6KΩ                         0.001KΩ

60KΩ                       0.01KΩ

600KΩ                     0.1KΩ

6MΩ                    0.001MΩ

60MΩ                   0.01MΩ

Warranty
1 year

What's in the Box

 Accessories   Test leads, User Manual, TP04 Thermocouple Probe, Carry Case & Battery

Application

HVAC, Automotive, Research
