OWON Authorized brand

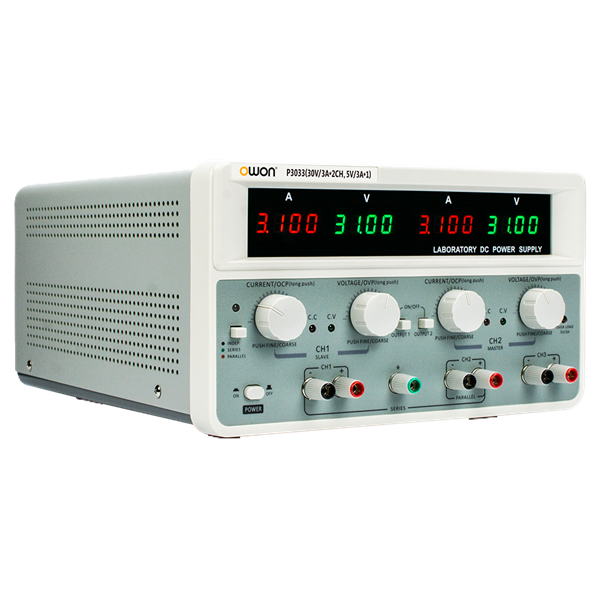

OWON P3053 - 3 Channel DC Power Supply - 30V 5A

SKU: P3033
Rs. 21,500.00 MRP Rs. 24,500.00 Save Rs. 3,000.00 (13% off) Inclusive of GST-18%
In Stock (3 available) Delivery 2-6 days MOQ 1 piece User manual (PDF)
Quantity to add

The OWON P3000 Series is a professional-grade 3-channel DC power supply designed for precise and flexible power delivery in laboratories, R&D environments, and electronics testing applications. It features dual independent adjustable outputs along with a dedicated fixed output channel, making it ideal for multi-device testing and complex circuit setups.

  • Dual-channel independent adjustable output
  • 10mV/1mA maximum output resolution
  • OVP/OCP Protection: Configurable over-voltage & over-current protection thresholds
  • Soft-start circuit design with low inrush current for enhanced reliability
  • Series/parallel configuration with directly display of combined output voltage and current
  • Buzzer on/off function
  • Adjustable Voltage/Current range limits prevent misuse
  • One-touch restoration to default settings
Product information

Everything you need to know

Technical Specifications

3 Channel Output (2 Variable + 1 Fixed 5V)
0–30V /5A
Resolution: 10mV / 1mA
Modes: Independent / Series / Parallel
Ripple: ≤2mVrms
Protection: OVP, OCP
Input: 100–240V AC
Temp: 0°C to 40°C


Warranty
1 year

Application

Electronics circuit testing & debugging
PCB design & prototyping
Dual voltage supply applications
Lab experiments & R&D work
Educational & training labs
Component testing & validation
Multi-device power supply setups
Repair & maintenance work
