OWON OWH9830 Three Phase Dual Channel Digital Power Analyzer

SKU: OWH9830
Rs. 58,500.00 MRP Rs. 68,500.00 Save Rs. 10,000.00 (15% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The OWON OWH9830 is a professional benchtop three-phase dual-channel digital power analyzer designed for high-precision power and energy measurement. Built for demanding industrial and laboratory environments, it enables accurate monitoring of electrical parameters and detailed analysis of power conversion efficiency.

  • Two-channel design

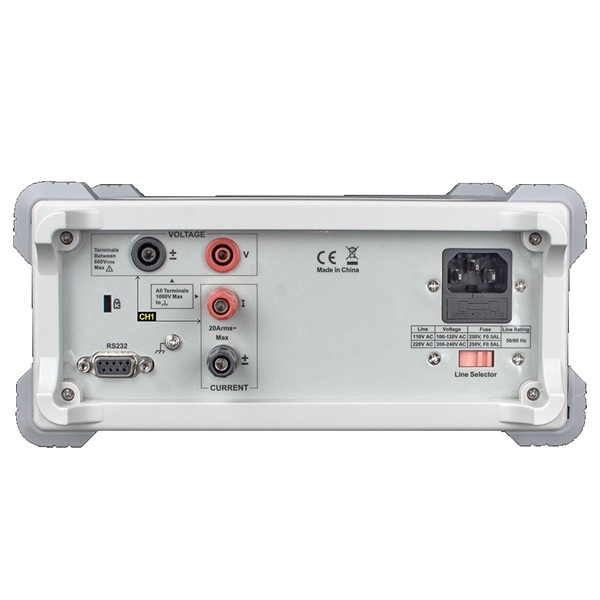

  • CH1 (rear panel): AC input – Supports 3–600V / 0–20A RMS, with an accuracy of ±0.5%
  • CH2 (front panel): AC/DC input – Supports 0–1000V / 0–20A, with an accuracy of ±0.5%
  • Supports single-phase and three-phase measurements, with 16 common parameters available for measurement
  • Harmonic measurement and analysis functionality, capable of analyzing up to 63rd harmonics
  • Combination of input and output power information for both channels, with automatic calculation of conversion efficiency
  • Trend waveform display, providing visual representation of dynamic parameter changes for easy debugging and analysis
  • 3.95” TFT LCD screen with clear, graphical display of multiple parameters, offering intuitive operation
  • Standard RS232 interfaces for remote monitoring and data logging, compatible with SCPI and Modbus protocols



Product information

Everything you need to know

Technical Specifications

Type: Three Phase, Dual Channel Power Analyzer
Voltage Range: Up to 600V RMS
Current Range: Up to 20A RMS
Parameters: V, A, W, VA, var, Power Factor, Frequency, Energy
Harmonics: Up to 63rd order
Measurement Mode: AC / AC+DC
Accuracy: High precision measurement
Resolution: Fine voltage & current resolution
Display: TFT LCD color screen (real-time data)
Functions: Efficiency measurement, data logging
Connectivity: RS232 / LAN (SCPI supported)
Input: AC 100–240V, 50/60Hz
Design: Benchtop, industrial-grade
Operating Temp: 0°C to 40°C


Warranty
1 Year

Application

Three-phase power measurement & analysis
Power conversion efficiency testing
Energy storage system testing (battery/inverter)
Industrial equipment testing & validation
Power quality & harmonic analysis
Electronics R&D and lab testing
Production line testing & automation setups
Energy monitoring & performance optimization
