OWON OWH9811 Single Phase Dual Channel Digital Power Meter 600V 20A

SKU: OWH9811
Rs. 29,850.00 MRP Rs. 32,500.00 Save Rs. 2,650.00 (9% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

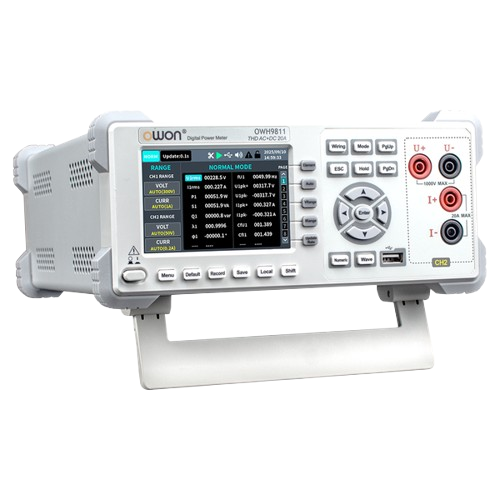

The OWON OWH9811 is a professional-grade, single-phase dual-channel digital power meter designed for precise measurement and analysis of electrical parameters in laboratory, industrial, and R&D environments. It supports a wide measurement range of 3V to 600V RMS and up to 20A current, making it suitable for a variety of power analysis applications.

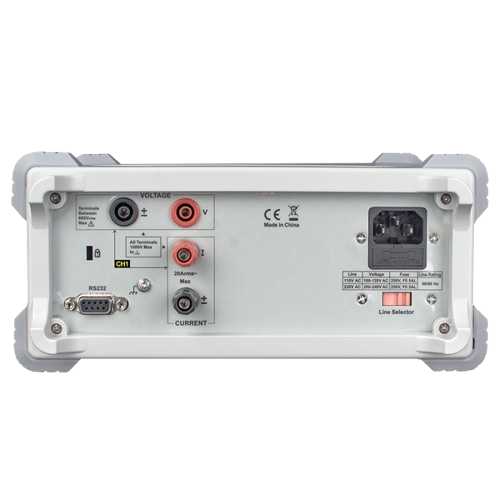

  • CH1 (rear panel): AC input – Supports 3–600V / 0–20A RMS, with an accuracy of ±0.5%
  • CH2 (front panel): AC/DC input – Supports 0–1000V / 0–20A, with an accuracy of ±0.5%
  • Supports single-phase measurements, with 16 common parameters available for measurement
  • Harmonic measurement and analysis functionality, capable of analyzing up to 63rd harmonics
  • Combination of input and output power information for both channels, with automatic calculation of conversion efficiency
  • Trend waveform display, providing visual representation of dynamic parameter changes for easy debugging and analysis
  • 3.95” TFT LCD screen with clear, graphical display of multiple parameters, offering intuitive operation
  • Standard RS232 interfaces for remote monitoring and data logging, compatible with SCPI and Modbus protocols



Product information

Everything you need to know

Technical Specifications

Voltage: 3–600V RMS
Current: 0–20A RMS
Type: Single Phase, Dual Channel Power Meter
Parameters: V, A, W, VA, var, PF, Frequency, THD
Harmonics: Up to 63rd order
Accuracy: High precision (±0.4%)
Resolution: Up to 0.01V / 0.001A
Display: 3.95-inch TFT LCD
Modes: AC / AC+DC
Data: Energy measurement & data logging
Connectivity: RS232 (SCPI / Modbus)
Input: AC 100–240V
Design: Benchtop, industrial-grade


Warranty
1 year

Application

Power measurement & electrical parameter analysis
Energy consumption monitoring
Harmonic & power quality analysis
Efficiency testing of electrical devices
Electronics R&D and lab testing
Industrial equipment testing & validation
Power system diagnostics & troubleshooting
Engineering labs & technical training
