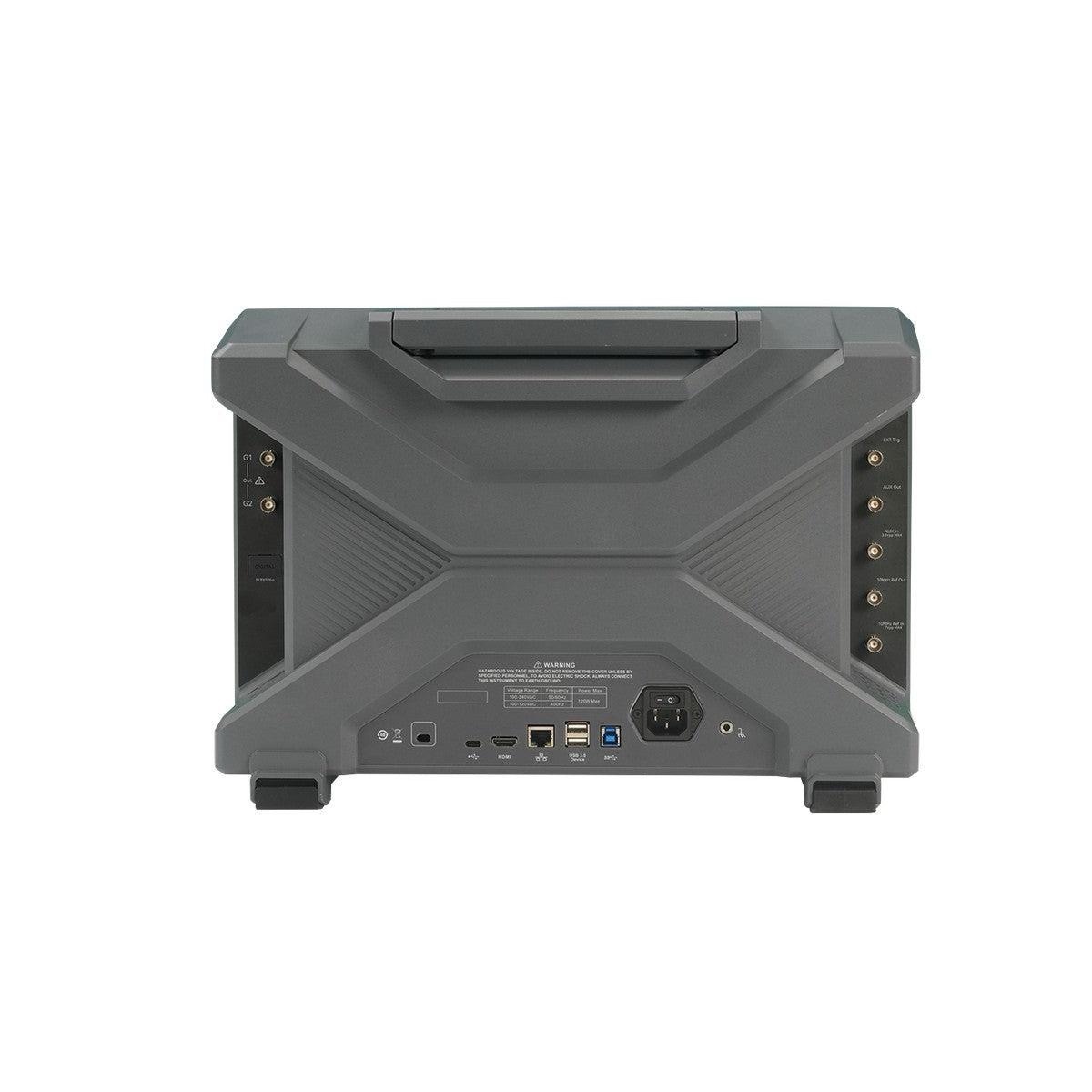

UNI-T MSO8804HD high-resolution oscilloscope

SKU: MSO8804HD
Rs. 7,200,000.00 MRP Rs. 8,400,000.00 Save Rs. 1,200,000.00 (15% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The UNI-T MSO8804HD High-Resolution Mixed Signal Oscilloscope is a premium-grade instrument engineered for advanced electronics testing, high-speed signal analysis, and precision measurement. With an impressive 8 GHz bandwidth, 20 GSa/s real-time sampling rate, and native 12-bit vertical resolution, it delivers exceptional waveform clarity and accuracy required in modern R&D environments.

  • UNI-T MSO8804HD
  • UNI-T oscilloscope
  • 8GHz oscilloscope
  • mixed signal oscilloscope (MSO)
  • high resolution oscilloscope 12-bit
  • digital storage oscilloscope (DSO)
  • high bandwidth oscilloscope
  • 20GSa/s oscilloscope
  • 4 channel oscilloscope
Product information

Everything you need to know

Technical Specifications

Bandwidth: Up to 8 GHz
Analog Channels: 4 channels
Digital Channels (Optional): 16 channels (MSO functionality)
Sampling Rate: Up to 20 GSa/s
Vertical Resolution: 12-bit ADC
Memory Depth: Up to 2 Gpts
Waveform Capture Rate: Up to 1,000,000 waveforms per second
Display: 15.6-inch Full HD touchscreen
Rise Time: ≤ 55 ps
Interfaces: USB, LAN, HDMI, PCIe
Operating System: Windows-based platform




Warranty
1 year

Application

High-speed digital signal testing
Signal integrity and jitter analysis
Embedded system debugging
UART, I2C, SPI, CAN, LIN protocol analysis
Automotive electronics diagnostics
Communication system testing (Ethernet, USB, PCIe)
Aerospace and defense electronics testing
Semiconductor research and validation
Power electronics and switching analysis
Waveform and frequency analysis
Noise and transient signal measurement
Advanced laboratory and R&D applications
