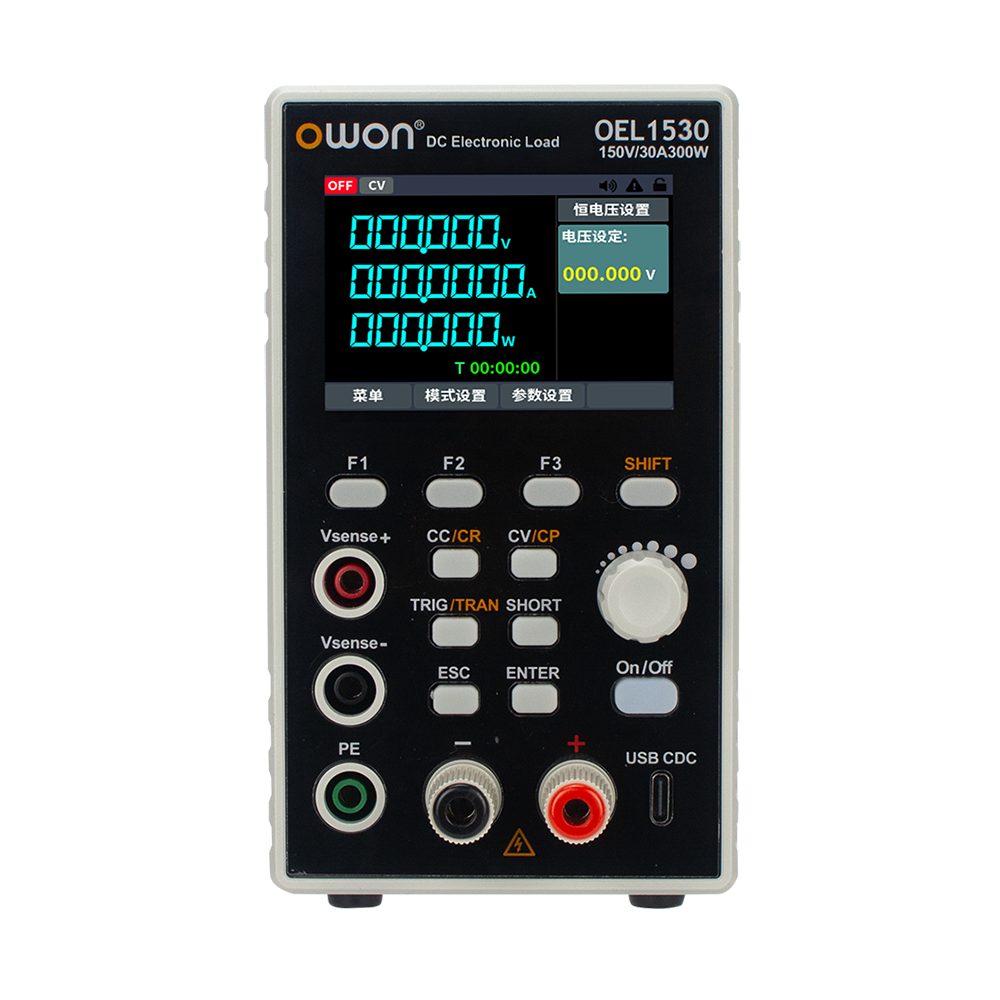

OWON OEL1530TV Series DC Electronics Load- 150V, 30A- 300W

SKU: OEL1530TV
Rs. 19,605.00 MRP Rs. 21,300.00 Save Rs. 1,695.00 (8% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.

OWON OEL1503T Programmable DC Electronic Load with 150V, 30A, and 300W capacity. Features CC/CV/CR/CP modes, dynamic testing up to 5kHz, USB/RS232 communication, SCPI support, and multiple protection functions for professional DC power testing.

  • Compact size,Portable and movable high-performance programmable electronic load
  • 2.8-inch TFT color LCD display
  • Four operation modes: CV, CC, CR, CP
  • Supports dynamic current testing up to 5kHz
  • High resolution readback: 1mV/0.1mA
  • Supports remote sensing compensation
  • Multiple protections including OVP/OCP/OPP/OTP
  • RS232,USB Device，SCPI protocol support
  • Optional test functions: Battery Discharge Test, OCP Test, OPP Test (Order No.OEL-T1)- INCLUDED
  • Optional test functions:Riplle Test (Order No.OEL-V)- INCLUDED
Product information

Everything you need to know

Technical Specifications



Voltage Range                  0 – 150V

Current Range                 0 – 30A

Power Rating   300W

Operation Modes          CC / CV / CR / CP

Display                 2.8" TFT LCD

Dynamic Test Frequency         Up to 5kHz

Setting Resolution       1mV / 1mA

Readback Resolution                 1mV / 0.1mA

Interfaces          USB, RS232

Protocol              SCPI

Protection         OVP / OCP / OPP / OTP

Warranty
1 Year

Application

SMPS testing
Charger and adapter testing
Battery discharge testing
Solar DC output testing
LED driver testing
Automotive electronics testing
R&D laboratories
Service and repair centers
