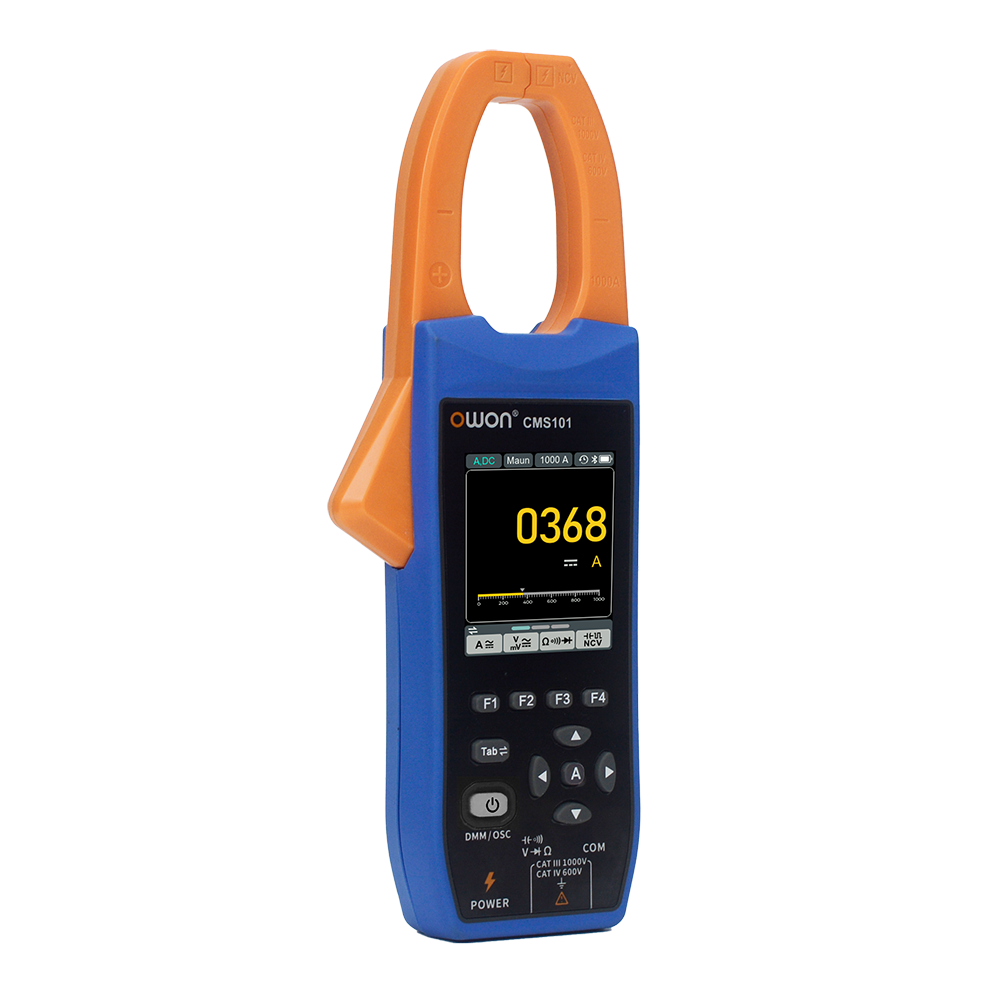

OWON CMS101 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder

SKU: MECSM1010 5.0 (1 Reviews)
Rs. 7,364.00 MRP Rs. 8,000.00 Save Rs. 636.00 (8% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add


 OWON MetroQ CMS101 Clamp Meter 4-in-1 TRMS AC/DC Clamp Multimeter with Scope / Recorder

  • 4-1/2 Dgt (20000) Count TRMS
  • 2.8 inch Multicolour LCD Display
  • BLUETOOTH Communication to iOS/Android
  • 1000 AC / DC Ampere with Inrush Current (1Khz Bandwidth)
  • 1000 AC / DC Voltage (1 Mhz Bandwidth)
  • Inbuilt Oscilloscope / Recorder
  • Measure Voltage & Ampere waveform simultaneously
  • 38mm Elongated Jaw Opening
  • Resistance , Capacitance , Frequency , Duty Cycle
  • NCV , APO with MAX/MIN /Surge Current Mode
  • Relative Value / Dc Current Reset Mode
  • One Click Measurement Touch key pad
  • Chargeable Li-Ion Battery
  • Automatic Shutdown for Battery Saving
  • Test Probes / USB Cable  / Carry Bag
  • 1 Year Warranty
Product information

Everything you need to know

Reviews (1)

Technical Specifications



General

  • Display: 2.8-inch IPS LCD
  • Display Counts: 2000 counts
  • True RMS: Yes
  • Clamp Opening: 38 mm
  • Battery Type: 1 × 18650 Lithium Battery (3.7V)
  • Dimensions (L × W × H): 248 × 94.5 × 37.8 mm
  • Data Interface: Bluetooth (Mobile App Support)
  • Data Storage: CSV export via mobile app
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes

Multimeter Specifications

DC Voltage

  • Range: 20 mV / 200 mV / 2 V / 20 V / 200 V / 1000 V
  • Accuracy: ±(0.1% + 5 digits)

AC Voltage

  • Range: 200 mV / 2 V / 20 V / 200 V / 1000 V
  • Accuracy: ±(0.6% + 10 digits)

DC Current

  • Range: 20 A / 200 A / 600 A / 1000 A
  • Accuracy: ±(2.0% + 5 digits)

AC Current

  • Range: 20 A / 200 A / 600 A / 1000 A
  • Accuracy: ±(2.5% + 5 digits)

Inrush Current

  • Range: 20 A / 200 A / 600 A / 1000 A
  • Accuracy: ±(10% + 10 digits)

Resistance

  • Range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
  • Accuracy: ±(0.3% + 5 digits)

Capacitance

  • Range: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2000 µF / 20 mF
  • Accuracy: ±(3.0% + 5 digits)

Frequency

  • Range: 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz
  • Accuracy: ±(0.1% + 5 digits)

Duty Cycle

  • Range: 0.1% – 99.9%
  • Accuracy: ±(1.2% + 3 digits)



Oscilloscope Specifications

Analog Bandwidth

  • Voltage: 1 MHz
  • Current: 1 kHz

Channels

  • 1 Channel

Sample Rate

  • 5 MSa/s

Maximum Input Voltage

  • 1000 V

Input Impedance

  • 10 MΩ

Maximum Current Measurement

  • 1000 A

Time Base

  • 2.5 µs/div – 10 s/div

Sensitivity

  • 30 mV/div – 500 V/div

Trigger Modes

  • Auto / Normal

Trigger Type

  • Rise / Fall

Measurement Functions

  • RMS
  • Period
  • Frequency
  • Maximum
  • Minimum
  • Peak-to-Peak
  • Average

Sampling Depth

  • 4K
Warranty
1 Year

Application

Electrical maintenance technicians
Industrial automation engineers
EV and motor diagnostics
Real feedback from verified buyers

Customer reviews

5.0 1 review
sandeep KUMAR Verified purchase
5.0

cms101 shows current and voltage graph which is quite useful

product arrived neatly packed, scope function is quite useful, for low currents < 2amps, the graph is not clear, need to wind few turns to get clear image. bluetooth connection to phone is one useful feature, but it doesnt show scope function on phone. need to see if future updates make that possible.
