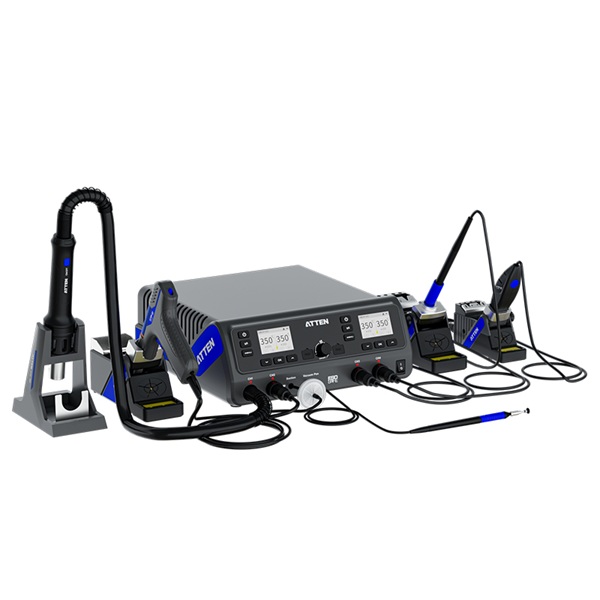

ATTEN MS-1600 4 In 1 Intelligent Rework Station

SKU: MS1600
Rs. 125,000.00 MRP Rs. 145,000.00 Save Rs. 20,000.00 (14% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.



Combines four essential tools in one workstation:

  • Precision Soldering Iron
  • Powerful Desoldering Gun
  • Adjustable Hot Air Rework Gun
  • Electric Tweezers for SMD components

Package Includes

  • Host unit x1
  • GT-Y151 Soldering Iron Handle x1
  • GT-X151 Desoldering Gun x1
  • SP-202D Hot Air Gun x1
  • S-28 Soldering Iron Stand x1
  • S-21 Desoldering Gun Stand x1
  • Soldering Iron Stand Connection Wire x1
  • H-06 Hot Air Gun Bracket x1
  • GT-N080 Electric Tweezers x1
  • S-27 Tweezer Stand x1
  • Tweezer Stand Connection Wire x1
  • Power Cord x1
  • Certificate of Conformity: 1 piece x1
  • Manual x1
  • Vacuum Soldering Pen x1
  • Suction Cups  x11
  • Suction Nozzles x3
  • Desoldering Nozzles x3
  • Needle Cleaner x2
  • O-Rings: x2
  • Dust Absorption Sponges: 10
  • Desoldering Tube Inner Spring: 1
  • Desoldering Tube Front Plug: 2
  • Straight Shank Twist Drill Bit: 1
  • Vacuum Generator Filter Paper: 10
  • Open-End Wrench: 1
  • Needle Cleaning Kit Box: 1
Product information

Everything you need to know

Technical Specifications

Model  MS-1600

Product Type   4-in-1 Intelligent Rework Station

Functions          Soldering Station, Desoldering Station, Hot Air Rework Station, Electric Tweezers

Input Voltage  AC 100V/110V/120V/220V/230V/240V, 50/60Hz

Total Power       900W

Control System              MCU Intelligent Digital Control

Display                 Large LCD Digital Display

Channel Configuration              3 Independent Working Channels

Tool Recognition            Automatic Tool Identification

Temperature Lock        Yes

Temperature Calibration          Yes

Standby Function         Yes

Sleep Function               Yes

Alarm Function               Yes

Communication Interface      USB/PC Communication Support

Vacuum Pickup System            Built-in Vacuum Generator

ESD Safe             Yes

Operating Temperature             0°C – 40°C



Soldering Station Specifications

Parameter         Specification

Soldering Handle          GT-Y151

Output Voltage                24V DC

Power Rating   150W

Temperature Range    150°C – 500°C

Temperature Stability                  ±2°C

Heating Element           Integrated High-Efficiency Heater

Sensor Type     Thermocouple

Sleep Timer      1 – 120 Minutes



Desoldering Station Specifications

Parameter         Specification

Desoldering Gun           GT-X151

Output Voltage                24V DC

Power Rating   150W Heater + Vacuum Pump

Temperature Range    300°C – 500°C

Temperature Stability                  ±2°C

Vacuum System             Built-in High-Suction Pump

Sleep Timer      1 – 120 Minutes



Hot Air Rework Specifications

Parameter         Specification

Hot Air Handle                 SP-202D

Heater Power  550W

Air Pump Power              25W

Temperature Range    150°C – 500°C

Maximum Airflow          23 L/min

Temperature Stability                  ±5°C

Noise Level       <52 dB(A)

Cooling System              Intelligent Auto-Cooling



Electric Tweezers Specifications

Parameter         Specification

Tweezer Model                GT-N080

Output Voltage                12V DC

Power Rating   100W

Temperature Range    150°C – 500°C

Temperature Stability                  ±2°C

Heating Element           Dual Heating System

Physical Specifications

Parameter         Specification

Dimensions     Approx. 310 × 251 × 119 mm

Weight Approx. 14 kg

Ground Resistance     < 2 Ω

Tip-to-Ground Voltage               < 2 mV

Warranty
2 Year on Controller

Application

SMD component soldering and removal, BGA rework and chip replacement, Mobile phone motherboard repair, Laptop and electronics repair, PCB prototyping and rework, Electronics manufacturing lines, R&D laboratories and repair workshops
