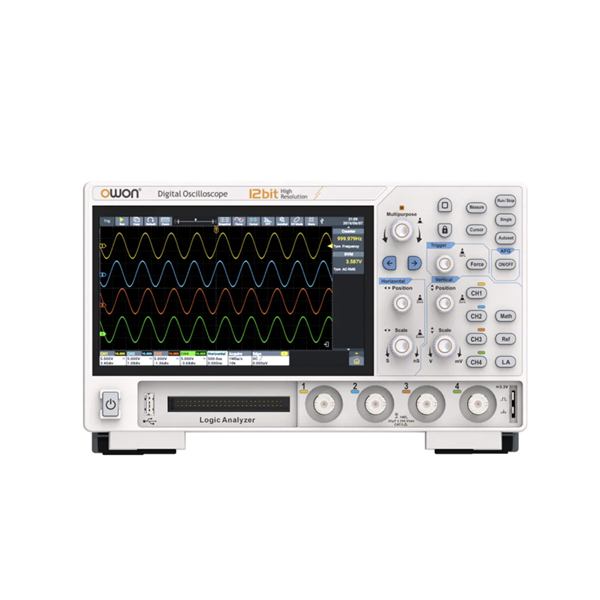

ADS924A
Bandwidth (-3 dB) 250 MHz
Channels 4
Max. sample rate 2 GSa/s (single-channel) 1 GSa/s (dual-channel) 500 MSa/s (full-channel)
DC Gain Accuracy 3% (≤1 mV)
2% (≥2 mV)
Max memory depth 100M
Vertical resolution 12 bits
Relay time accuracy ±25 ppm (typical)
Input Impedance 1 MΩ±2%, parallel with20 pF±5 pF
Probe Attenuation Coefficient 1.00μX-1M.00X,step by 1-2-5, support custom
Trigger type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I²C, SPI CAN, LIN
Bus decoding RS232/UART, I²C, SPI, CAN, LIN
Auto measurement Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑)
Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), FRR(A↑-B↑), FRF(A↑-B↓)
FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑), LFF(A↓-B↓)
Waveform Math +, -, *, /, &&, ||, ^, ！, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter 6-digit frequency counter
Maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter Support DC, AC+DCrms, ACrms, Resolution: 4 digits (ACV/DCV)
Logical Analyzer Specifications
Number of channels 16 input channels (D0-D15) (D0 to D7, D8 to D15)
Max. input voltage ±40V peak CAT I, transient overvoltage 800Vpk
Input Impedance 100kΩ, 8 pF
Vertical resolution 1 bit

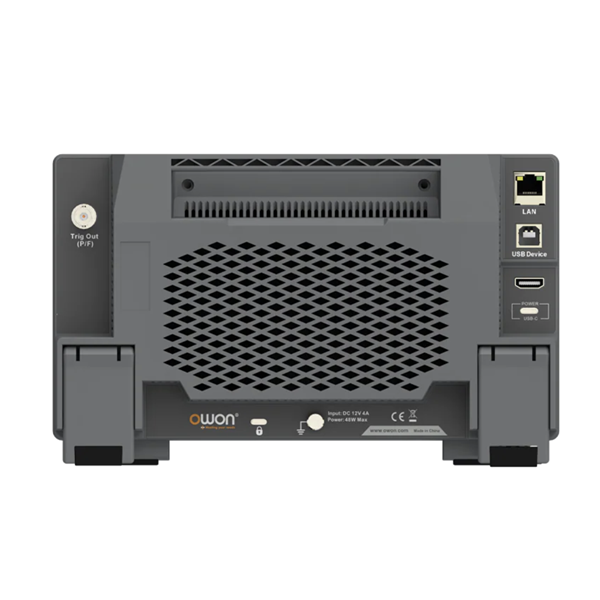

Communication Interface HDMI, USB device, USB Host, Trig Out (P/F), LAN
Display 7 inch (1024x600), capacitive multi-touch screen
Power supply interface USB-C
Dimensions 260 x 160 x 78 mm
Weight 1.5 kg
Warranty:
2 Years
instrument used primarily in electronics design, testing, research, and analysis. It consolidates multiple functions into a single device, making it a comprehensive tool for engineers and hobbyists.
