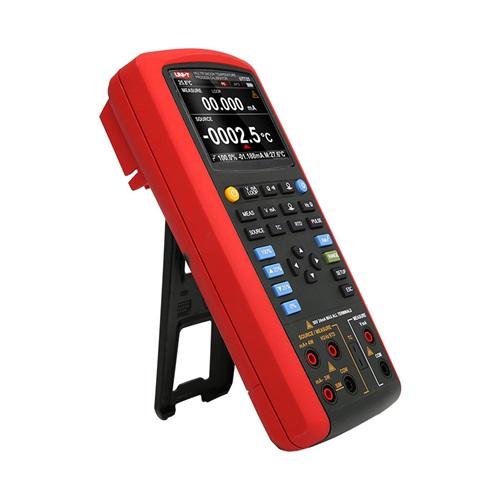

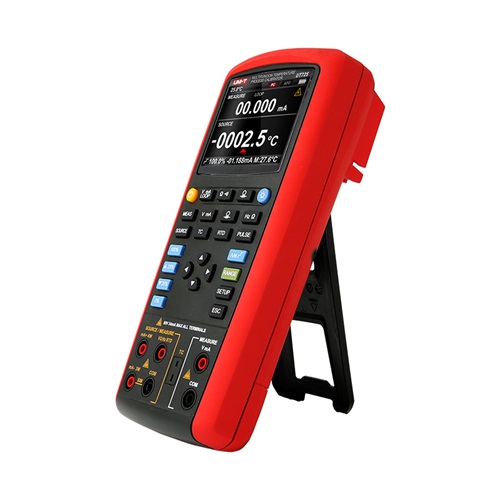

Specifications Range UT725
Measurement
DC voltage (V) 50mV/500mV/50V ±(0.02%+2)
DC current (mA) 20mA ±(0.02%+2)
Loop current (mA) 20mA ±(0.02%+2)
Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
Frequency (Hz) 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)
Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test √
Pulses (Hz) 1~15kHz (1~100000 periods)
Source accuracy
DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
DC current (A) 20mA/20mA(SIM) ±(0.02%+2)
Resistance (Ω) 400Ω/4000Ω/40kΩ ±(0.05%+10)
Frequency (Hz) 200Hz/2000Hz/20kHz/100kHz ±(0.01%+1)
Pulses (Hz) 100Hz/1kHz/10kHz ±1
Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count 20000
Operation temperature -10°C~55°C
Warranty:
1 Year
Support voltage, current, frequency, thermocouple and other signal mode output and input.
