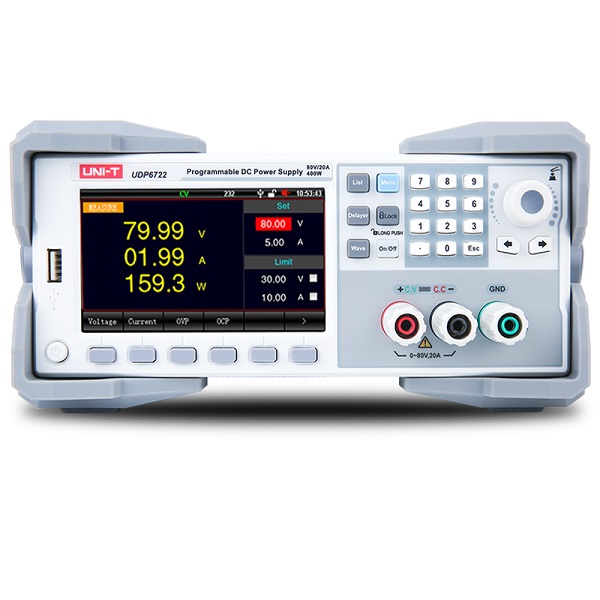

UNI-T UDP6723B DC Power Supply, 150V, 20A

The UDP6720 series programmable DC power supply is a versatile switching power supply offering a wide operating range. This model is compact, lightweight, and highly functional, featuring a 4.3-inch LCD screen for intuitive parameter display and quick operation. It is suitable for use in automated test systems, product development and debugging, laboratories, teaching experiments, and mobile phone or home appliance repair.

• List Function: The list mode is a powerful feature that enables sequence output of up to 200 steps. This is extremely useful for simulating complex power supply scenarios. For example, in product development and debugging, it can be used to test how a device responds to different voltage and current levels over time. Each step can be programmed with specific voltage (ranging from 0 – 150 V), current (0 – 40 A), and time (adjustable) values, as demonstrated in the provided list setup table.
• Delayer Function: The delayer mode also supports a sequence output of up to 200 steps. It is designed to realize automatic multiple power – on/off operations. This is beneficial for applications that require timed power cycling, like battery charging tests or reliability testing of electronic devices. The delayer setup table shows how to configure the on/off states and the corresponding time intervals for each step.
• Output Curve Display: It provides an intuitive display of voltage, current, and power waveforms. This visual representation helps users quickly understand the power output status, making it easier to detect abnormal conditions during testing or operation. For instance, in a laboratory environment, researchers can observe the waveform changes when a device is under different loads.
• Perfect File Management: The power supply offers extensive file management capabilities. It can save up to 100 configuration files, 40 delayer files, and 40 list files. This allows users to store different sets of operation parameters for future use, facilitating quick setup and reproducibility of tests. For example, a user can save a specific configuration file for a particular product testing process and easily recall it whenever needed.
• 4.3 – inch Full – color LCD: The large 4.3 – inch full – color LCD screen offers comprehensive information display. It uses color separation to display different content, such as real – time voltage, current, power values, as well as configuration settings and operation status. This makes it more convenient for users to read and operate the power supply, even in different lighting conditions.
• Channel 1
• Power 850W
• Output Voltage 0-150V
• Output Current 0-20A
• Resolution 100 mV,10 mA
• Setting Accuracy <0.03%+100 mV <0.1%+20 mA

Technical Documents - 1
